• Budget POS22L Left Hand Steel / Bronze Lined Plain Male Rod End 22mm Bore M22x1.5 Thread
1 1

SKU: POS22L.EU

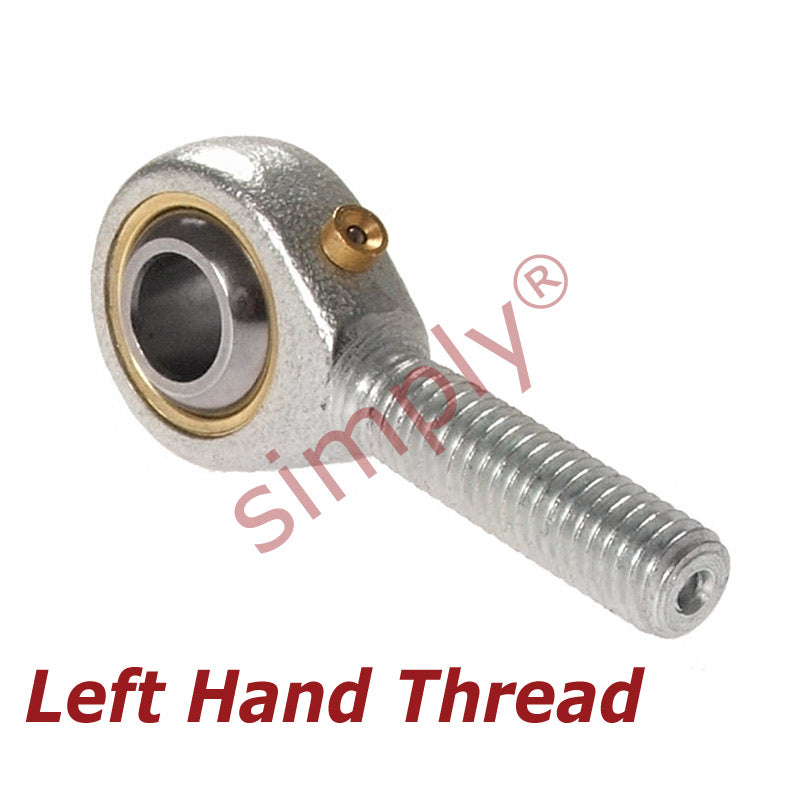

Budget POS22L Left Hand Steel / Bronze Lined Plain Male Rod End 22mm Bore M22x1.5 Thread

Budget POS22L Left Hand Steel / Bronze Lined Plain Male Rod End 22mm Bore M22x1.5 Thread
$22.20 ex VAT
$22.20 ex VAT
Sale Sold out

Equivalent to: SALKAC22M MBL-M22

In stock

Price Break
10+ $14.87
19+ $14.03
29+ $13.87
39+ $13.70
49+ $13.53
74+ $13.37
99+ $12.53
199+ $12.36
249+ $12.20
499+ $12.03
999+ $11.70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Male Rod End with Phosphor Bronze Race: LEFT hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M22x1.5
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
22mm
Material:
Bronze Lined
Technical
d 22mm
B 28mm
r1 0.6mm
C1 20mm
d1 max 25.8mm
d2 50mm
d3 M22x1.5
h 84mm
l1 51mm
l2 109mm
Ball diameter 1-1/2 inch
Dynamic load Cr 38.1 kN
Static load Cor 42.6 kN
Max angle α 15
Weight 0.435 kg
