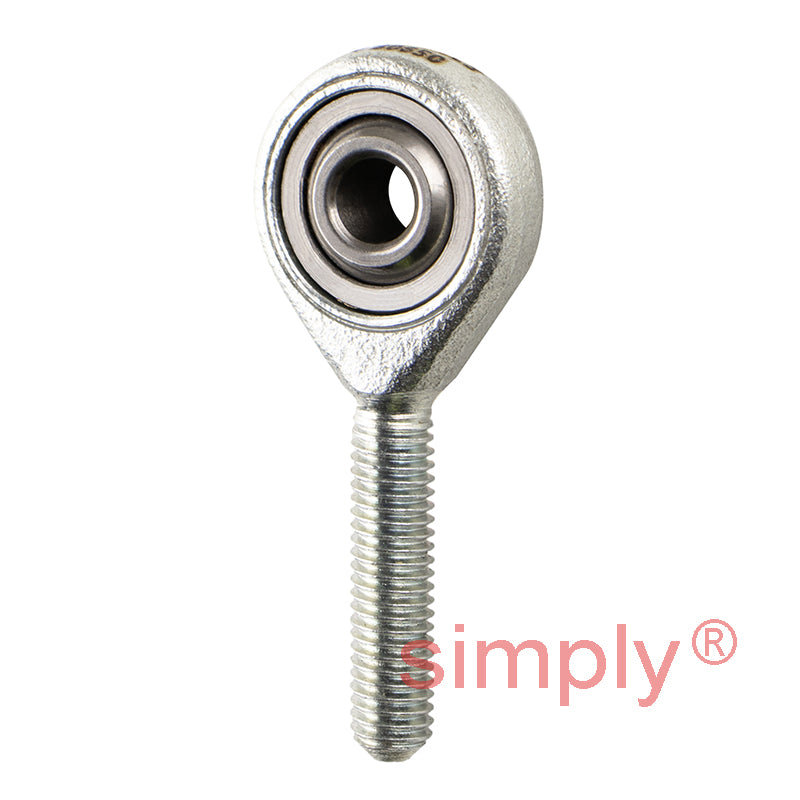

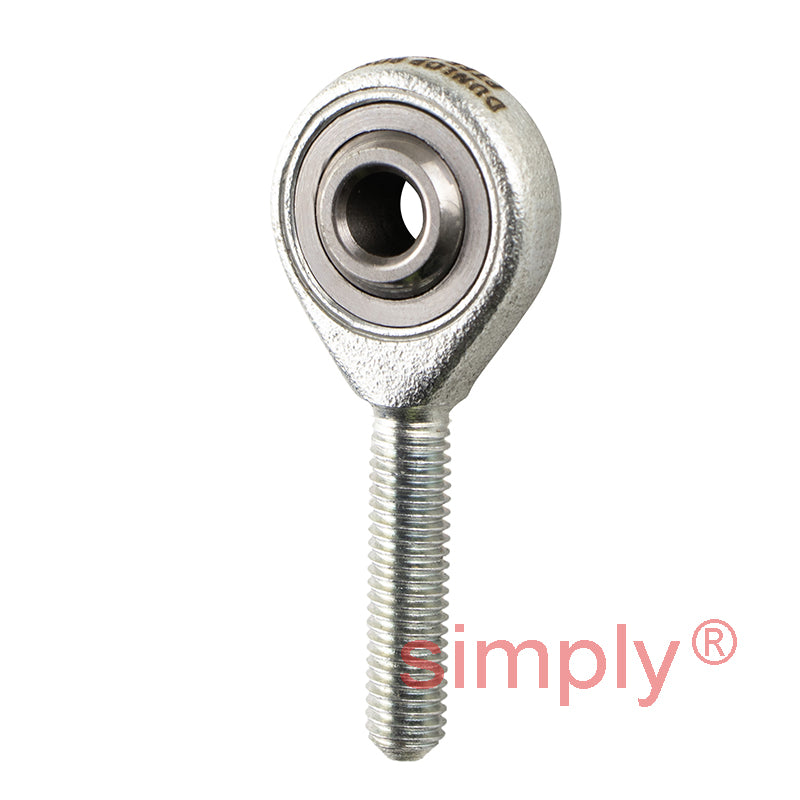

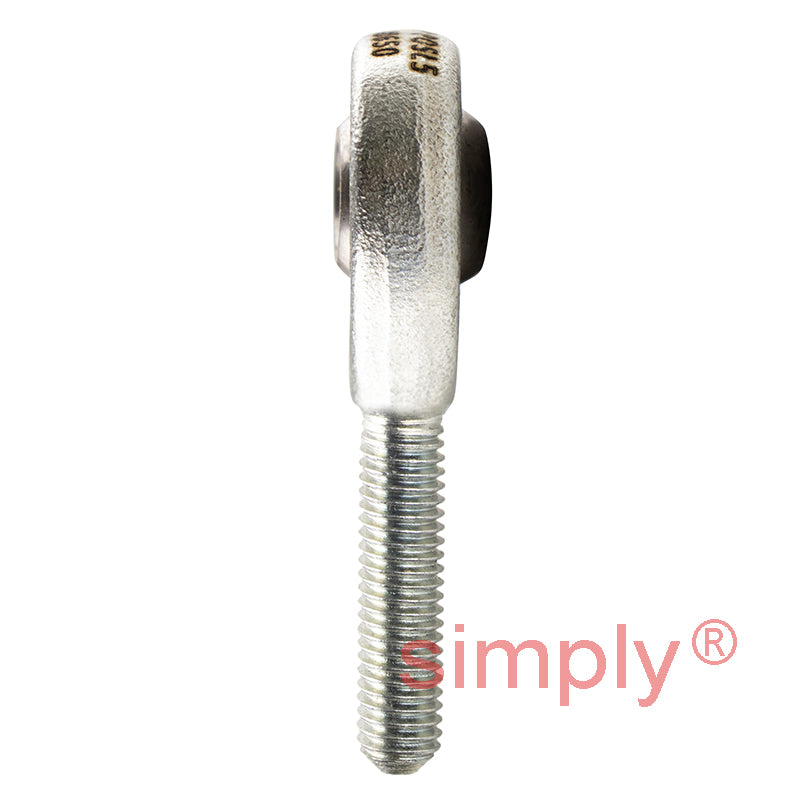

• Budget POS5L Left Hand Steel / PTFE Lined Plain Male Rod End 5mm Bore M5x0.8 Thread
  • Budget POS5L Left Hand Steel / PTFE Lined Plain Male Rod End 5mm Bore M5x0.8 Thread
  • Budget POS5L Left Hand Steel / PTFE Lined Plain Male Rod End 5mm Bore M5x0.8 Thread
1 3

SKU: POS5L.EC

Budget POS5L Left Hand Steel / PTFE Lined Plain Male Rod End 5mm Bore M5x0.8 Thread

Budget POS5L Left Hand Steel / PTFE Lined Plain Male Rod End 5mm Bore M5x0.8 Thread
$16.74 ex VAT
$16.74 ex VAT
Sale Sold out

In stock

Price Break
10+ $11.21
19+ $10.58
29+ $10.45
39+ $10.33
49+ $10.20
74+ $10.08
99+ $9.45
199+ $9.32
249+ $9.19
499+ $9.07
999+ $8.82

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M5x0.8
Thread Direction:
Left Hand
Material:
PTFE Lined
Technical
d 5mm
B 8mm
r1 0.3mm
C1 6mm
d1 max 7.7mm
d2 16mm
d3 M5x0.8
h 33mm
l1 20mm
l2 41mm
Ball diameter 7/16 inch
Dynamic load Cr 3.3 kN
Static load Cor 3.4 kN
Max angle α 13
Weight 0.0125 kg
