SKU: POS8L.EC

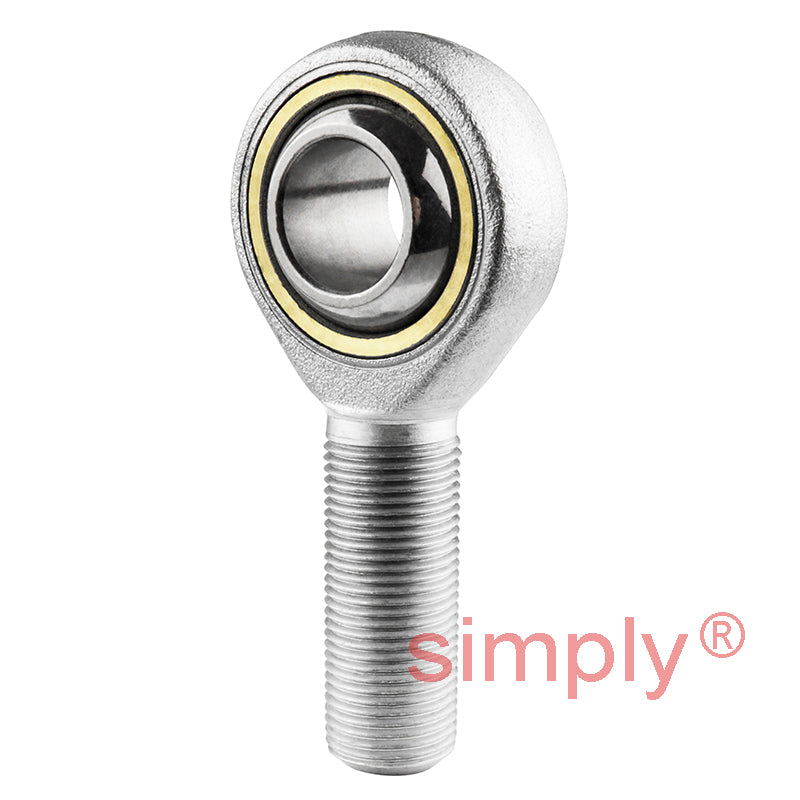

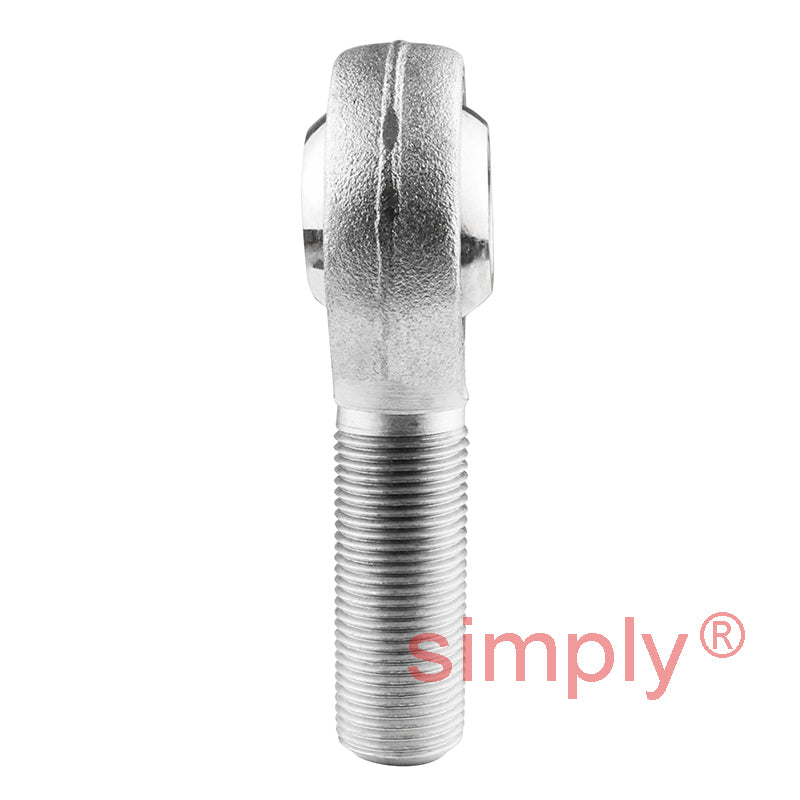

Budget POS8LEC Maintenance Free Left Hand Steel / PTFE Lined Plain Male Rod End 8mm Bore M8x1.25 Thread

Budget POS8LEC Maintenance Free Left Hand Steel / PTFE Lined Plain Male Rod End 8mm Bore M8x1.25 Thread
$40.51 ex VAT
$40.51 ex VAT
Sale Sold out

In stock

Price Break
10+ $27.14
19+ $25.61
29+ $25.31
39+ $25.00
49+ $24.70
74+ $24.39
99+ $22.87
199+ $22.56
249+ $22.26
499+ $21.95
999+ $21.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M8x1.25
Thread Direction:
Left Hand
Material:
PTFE Lined
Technical
d 8mm
B 12mm
r1 0.3mm
C1 9mm
d1 max 10.3mm
d2 22mm
d3 M8x1.25
h 42mm
l1 25mm
l2 53mm
Ball diameter 5/8 inch
Dynamic load Cr 7.1 kN
Static load Cor 8.8 kN
Max angle α 14
Weight 0.032 kg
