SKU: POS8L.EU

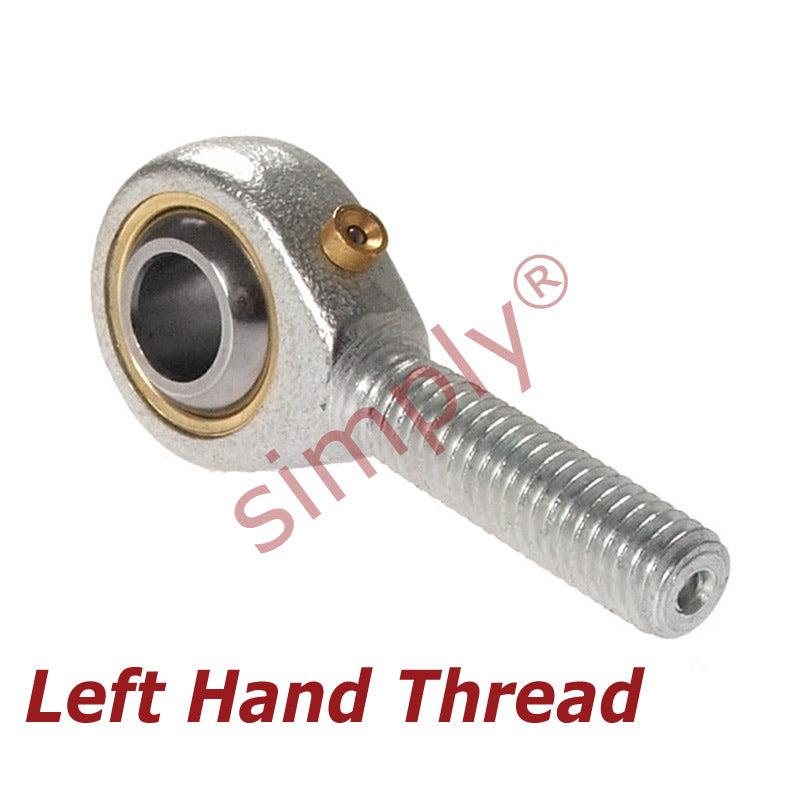

Budget POS8L Left Hand Steel / Bronze Lined Plain Male Rod End 8mm Bore M8x1.25 Thread
Budget POS8L Left Hand Steel / Bronze Lined Plain Male Rod End 8mm Bore M8x1.25 Thread
Regular price
$6.63
ex VAT
Regular price
Sale price
$6.63
ex VAT
Equivalent to: SALKAC8M MBL-M08
In stock
Price Break
10+
$4.44
19+
$4.19
29+
$4.14
39+
$4.09
49+
$4.04
74+
$3.99
99+
$3.74
199+
$3.69
249+
$3.64
499+
$3.60
999+
$3.50
Quantity
Couldn't load pickup availability
Description
Description
|
Male Rod End with Phosphor Bronze Race: LEFT hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M8x1.25
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 8mm
- Material:
- Bronze Lined
Technical
Technical
| d | 8mm |
|---|---|
| B | 12mm |
| r1 | 0.3mm |
| C1 | 9mm |
| d1 max | 10.3mm |
| d2 | 22mm |
| d3 | M8x1.25 |
| h | 42mm |
| l1 | 25mm |
| l2 | 53mm |
| Ball diameter | 5/8 inch |
| Dynamic load Cr | 7.1 kN |
| Static load Cor | 8.8 kN |
| Max angle α | 14 |
| Weight | 0.032 kg |
