SKU: POSB8

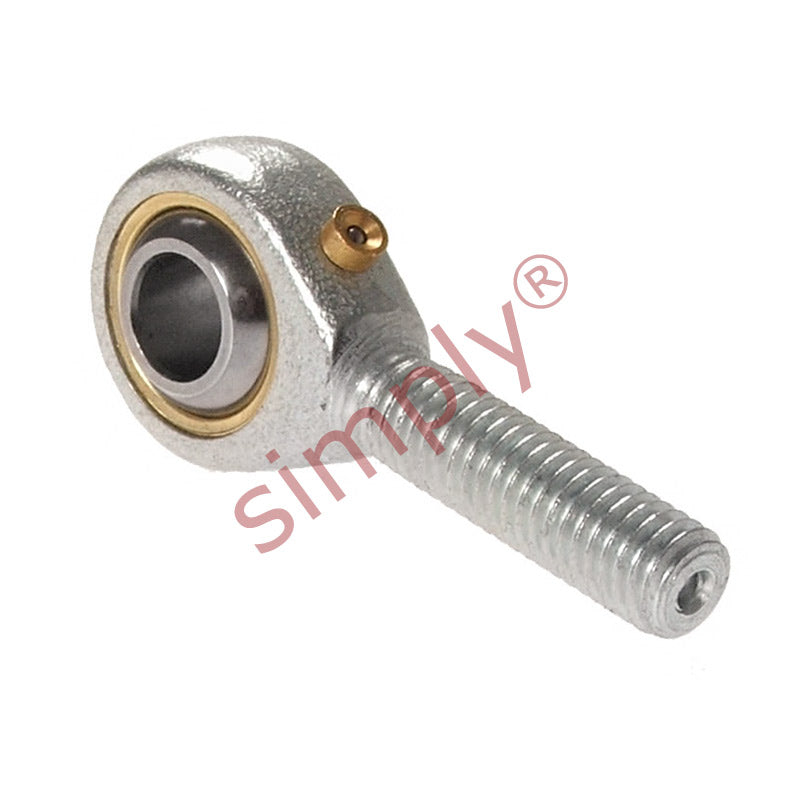

Budget POSB8 Right Hand Steel / Bronze Lined Plain Male Rod End 1/2 inch Bore 0.5000-20UNF Thread

Name: Budget POSB8 Right Hand Steel / Bronze Lined Plain Male Rod End 1/2 inch Bore 0.5000-20UNF Thread
Brand: Gen
SKU: POSB8
Price: 16.06 USD
Availability: InStock

$16.06 ex VAT

Sale Sold out

In stock

Price Break

10+ $10.76

19+ $10.16

29+ $10.04

39+ $9.92

49+ $9.79

74+ $9.67

99+ $9.07

199+ $8.95

249+ $8.83

499+ $8.71

999+ $8.46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: 0.5000-20UNF
Thread Direction:: Right Hand
Inside Diameter:: 12.7mm = 0.5 (1/2) inch
Material:: Bronze Lined

Technical

Bore	1/2inch
Head Diameter	1.312 inch
Height	3.094 inch
Height to Bore Centre	2.438 inch
Thread Length	1.500 inch
Thread Size	0.5000-20UNF
Dynamic Load	14800N
Static Load	36300N
