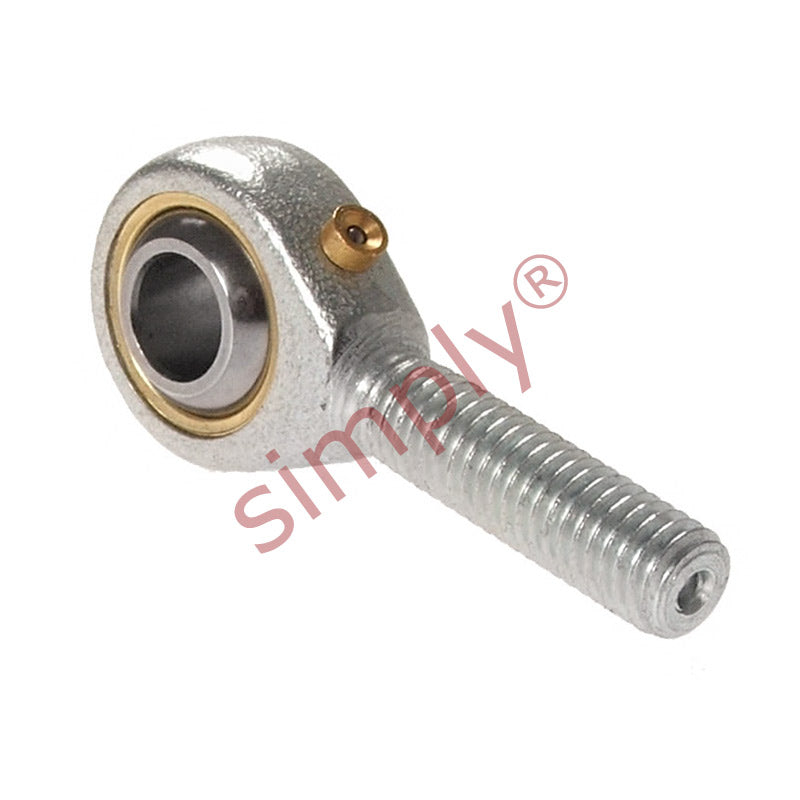

Branded POSB8 Right Hand Steel / Bronze Lined Plain Male Rod End 1/2 inch Bore 0.5000-20UNF Thread
Branded POSB8 Right Hand Steel / Bronze Lined Plain Male Rod End 1/2 inch Bore 0.5000-20UNF Thread
Out of stock
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 0.5000-20UNF
- Thread Direction:
- Right Hand
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Material:
- Bronze Lined
Technical
Technical
| Bore | 1/2inch |
|---|---|
| Head Diameter | 1.312 inch |
| Height | 3.094 inch |
| Height to Bore Centre | 2.438 inch |
| Thread Length | 1.500 inch |
| Thread Size | 0.5000-20UNF |
| Dynamic Load | 14800N |
| Static Load | 36300N |
