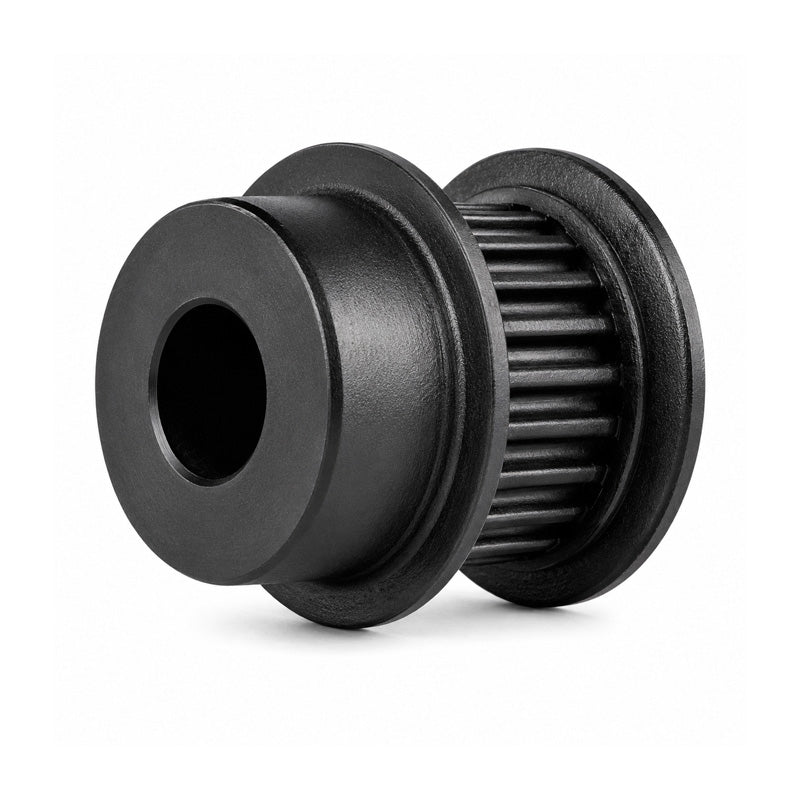

• PP10-MXL-025M - 0.08 inch Pitch 10 Tooth Pilot Bore Polycarbonate (Glass Filled) Timing Pulley for 1/4 inch Wide Belt
1 1

SKU: PP10-MXL-025M

PP10-MXL-025M - 0.08 inch Pitch 10 Tooth Pilot Bore Polycarbonate (Glass Filled) Timing Pulley for 1/4 inch Wide Belt

PP10-MXL-025M - 0.08 inch Pitch 10 Tooth Pilot Bore Polycarbonate (Glass Filled) Timing Pulley for 1/4 inch Wide Belt
$12.82 ex VAT
$12.82 ex VAT
Sale Sold out

Equivalent to: PP10MXL025M

In stock

Price Break
3+ $8.59
5+ $8.11
9+ $8.01
19+ $7.91
49+ $7.82
74+ $7.72
99+ $7.24
199+ $7.14
249+ $7.05
499+ $6.95
999+ $6.76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Teeth:
10
Material:
Polycarbonate (Glass Filled)
Belt Width Approx:
6.35mm = 0.25 (1/4) inch
Pitch:
2.03mm = 0.08 inch
Item Type:
Flangeless Pilot Bored Pulley

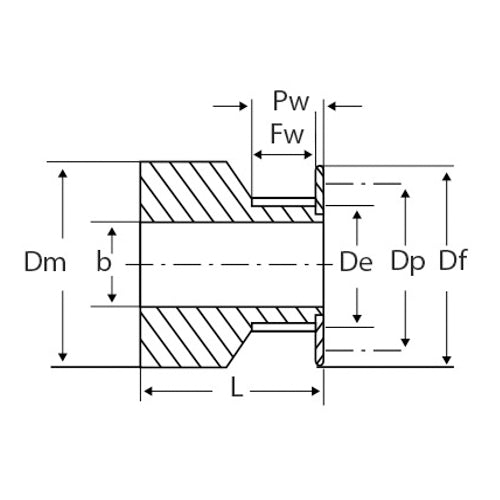

Technical
No.teeth 10
Dp 6.45mm
De 5.97mm
Df 11mm
Dm 11mm
Fw 8mm
L 17.5mm
Bore (d) 3mm
Material Polycarbonate (Glass Filled)
Bore Pilot Bored
Belt Width 6.35mm = 0.25 (1/4) inch
Pitch 2.03mm = 0.08 inch
Pw 11.2mm
