SKU: PP11-MXL-025M

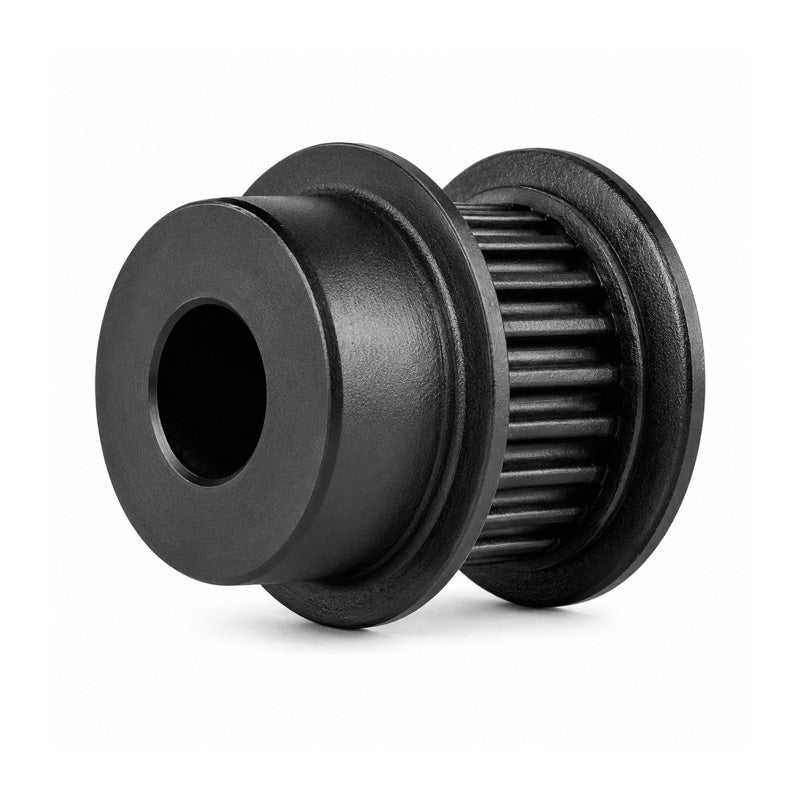

PP11-MXL-025M - 0.08 inch Pitch 11 Tooth Pilot Bore Polycarbonate (Glass Filled) Timing Pulley for 1/4 inch Wide Belt

Name: PP11-MXL-025M - 0.08 inch Pitch 11 Tooth Pilot Bore Polycarbonate (Glass Filled) Timing Pulley for 1/4 inch Wide Belt
Brand: Drive-Flex
SKU: PP11-MXL-025M
Price: 13.30 USD
Availability: InStock

$13.30 ex VAT

Sale Sold out

Equivalent to: PP11MXL025M

In stock

Price Break

3+ $8.91

5+ $8.41

9+ $8.31

19+ $8.21

49+ $8.11

74+ $8.01

99+ $7.51

199+ $7.41

249+ $7.31

499+ $7.21

999+ $7.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Drive-Flex - High Quality
Teeth:: 11
Material:: Polycarbonate (Glass Filled)
Belt Width Approx:: 6.35mm = 0.25 (1/4) inch
Pitch:: 2.03mm = 0.08 inch
Item Type:: Flangeless Pilot Bored Pulley

Technical

No.teeth	11
Dp	7.11mm
De	6.6mm
Df	12mm
Dm	11mm
Fw	8mm
L	17.5mm
Bore (d)	3mm
Material	Polycarbonate (Glass Filled)
Bore	Pilot Bored
Belt Width	6.35mm = 0.25 (1/4) inch
Pitch	2.03mm = 0.08 inch
Pw	11.2mm
