SKU: PP110-MXL-025MI

PP110-MXL-025MI - 0.08 inch Pitch 110 Tooth Pilot Bore Polycarbonate (Glass Filled) Timing Pulley with Brass Insert

Name: PP110-MXL-025MI - 0.08 inch Pitch 110 Tooth Pilot Bore Polycarbonate (Glass Filled) Timing Pulley with Brass Insert
Brand: Drive-Flex
SKU: PP110-MXL-025MI
Price: 31.42 USD
Availability: InStock

$31.42 ex VAT

Sale Sold out

Equivalent to: PP110MXL025MI

In stock

Price Break

3+ $21.05

5+ $19.86

9+ $19.63

19+ $19.39

49+ $19.15

74+ $18.92

99+ $17.74

199+ $17.50

249+ $17.26

499+ $17.03

999+ $16.55

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Drive-Flex - High Quality
Teeth:: 110
Material:: Polycarbonate (Glass Filled)
Belt Width Approx:: 6.35mm = 0.25 (1/4) inch
Pitch:: 2.03mm = 0.08 inch
Item Type:: Flangeless Pilot Bored Pulley

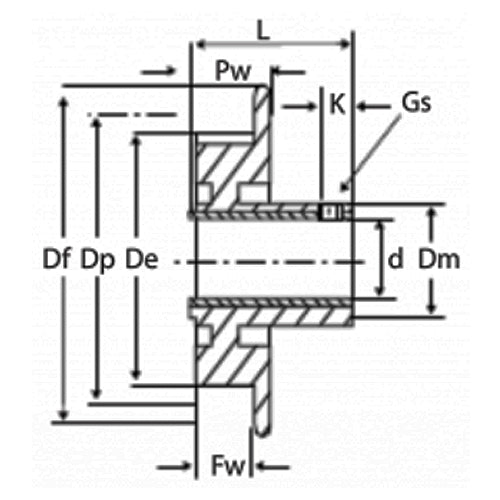

Technical

No.teeth	110
Dp	71.15mm
De	70.63mm
Df	75mm
Dm	17mm
Fw	8mm
L	17.5mm
Bore (d)	6mm
Gs	1 x M3
Material	Polycarbonate (Glass Filled)
Bore	Pilot Bored
Belt Width	6.35mm = 0.25 (1/4) inch
Pitch	2.03mm = 0.08 inch
Pw	11mm
Insert	Brass
K	3inch
