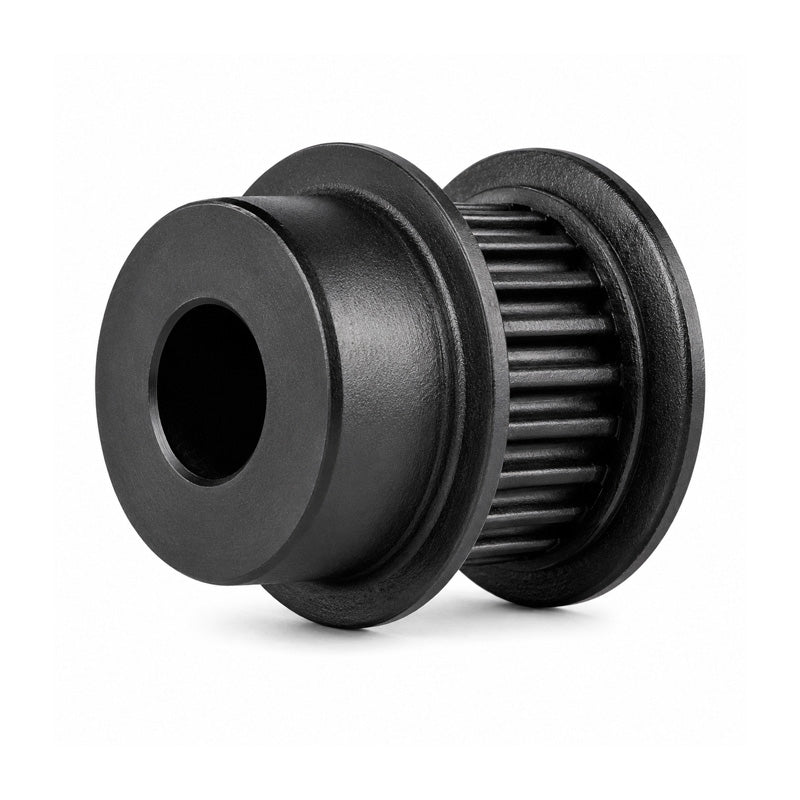

• PP12-MXL-025M - 0.08 inch Pitch 12 Tooth Pilot Bore Polycarbonate (Glass Filled) Timing Pulley for 1/4 inch Wide Belt
1 1

SKU: PP12-MXL-025M

PP12-MXL-025M - 0.08 inch Pitch 12 Tooth Pilot Bore Polycarbonate (Glass Filled) Timing Pulley for 1/4 inch Wide Belt

PP12-MXL-025M - 0.08 inch Pitch 12 Tooth Pilot Bore Polycarbonate (Glass Filled) Timing Pulley for 1/4 inch Wide Belt
$13.34 ex VAT
$13.34 ex VAT
Sale Sold out

Equivalent to: PP12MXL025M

In stock

Price Break
3+ $8.93
5+ $8.43
9+ $8.33
19+ $8.23
49+ $8.13
74+ $8.03
99+ $7.53
199+ $7.43
249+ $7.33
499+ $7.23
999+ $7.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Teeth:
12
Material:
Polycarbonate (Glass Filled)
Belt Width Approx:
6.35mm = 0.25 (1/4) inch
Pitch:
2.03mm = 0.08 inch
Item Type:
Flangeless Pilot Bored Pulley

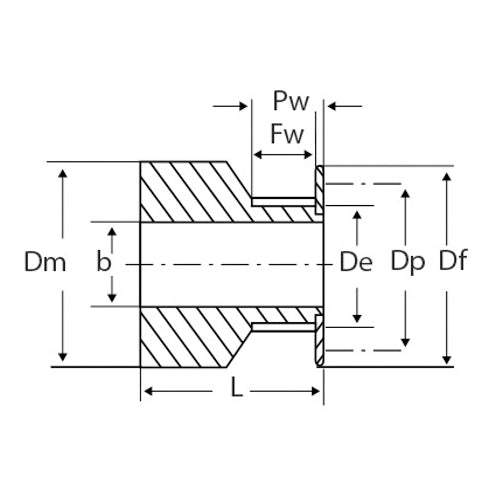

Technical
No.teeth 12
Dp 7.77mm
De 7.26mm
Df 12mm
Dm 11mm
Fw 8mm
L 17.5mm
Bore (d) 3mm
Material Polycarbonate (Glass Filled)
Bore Pilot Bored
Belt Width 6.35mm = 0.25 (1/4) inch
Pitch 2.03mm = 0.08 inch
Pw 11.2mm
