• PP18-MXL-025M - 0.08 inch Pitch 18 Tooth Pilot Bore Polycarbonate (Glass Filled) Timing Pulley for 1/4 inch Wide Belt
1 1

SKU: PP18-MXL-025M

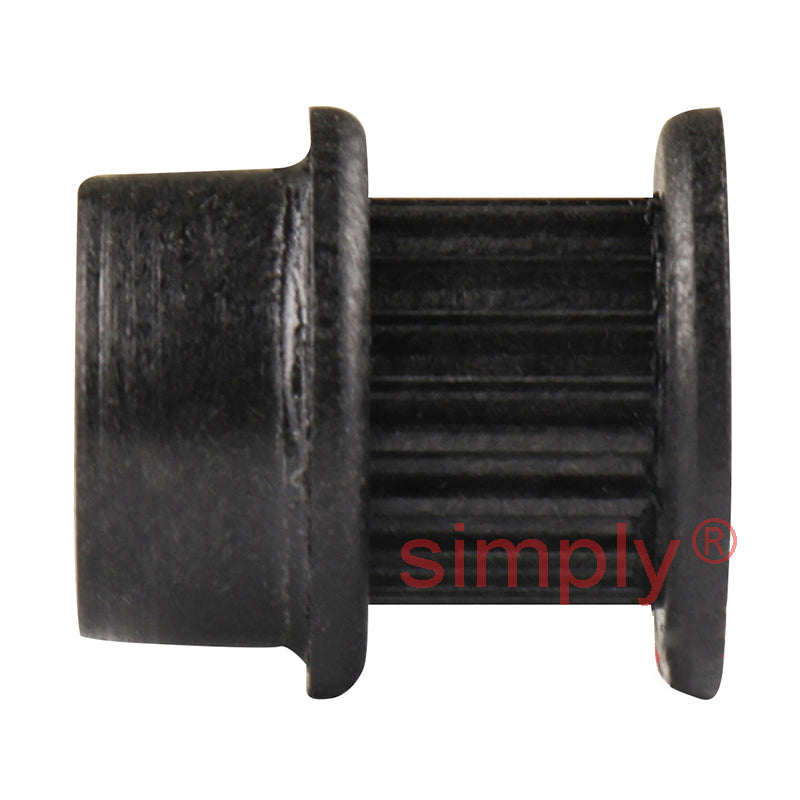

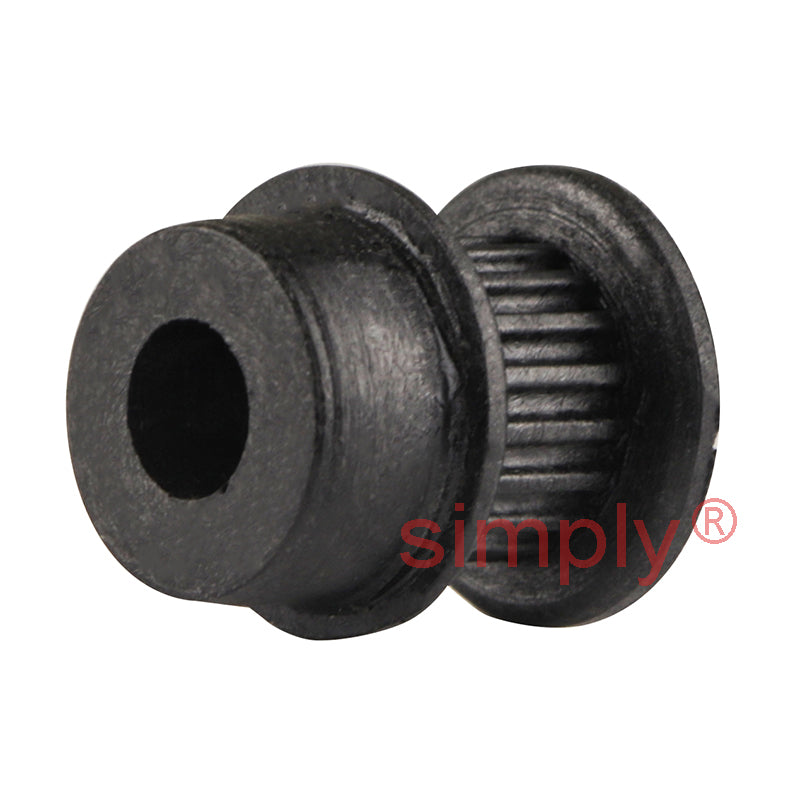

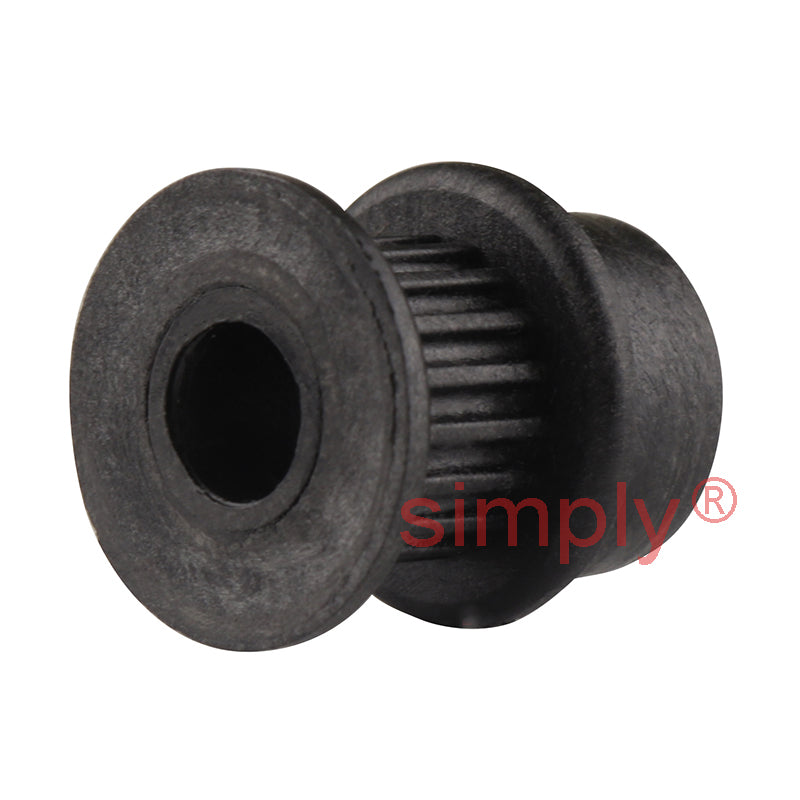

PP18-MXL-025M - 0.08 inch Pitch 18 Tooth Pilot Bore Polycarbonate (Glass Filled) Timing Pulley for 1/4 inch Wide Belt

PP18-MXL-025M - 0.08 inch Pitch 18 Tooth Pilot Bore Polycarbonate (Glass Filled) Timing Pulley for 1/4 inch Wide Belt
$13.65 ex VAT
$13.65 ex VAT
Sale Sold out

Equivalent to: PP18MXL025M

In stock

Price Break
3+ $9.14
5+ $8.63
9+ $8.52
19+ $8.42
49+ $8.32
74+ $8.22
99+ $7.70
199+ $7.60
249+ $7.50
499+ $7.39
999+ $7.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Teeth:
18
Material:
Polycarbonate (Glass Filled)
Belt Width Approx:
6.35mm = 0.25 (1/4) inch
Pitch:
2.03mm = 0.08 inch
Item Type:
Flangeless Pilot Bored Pulley
Technical
No.teeth 18
Dp 11.63mm
De 11.12mm
Df 16mm
Dm 13mm
Fw 8mm
L 17.5mm
Bore (d) 6mm
Material Polycarbonate (Glass Filled)
Bore Pilot Bored
Belt Width 6.35mm = 0.25 (1/4) inch
Pitch 2.03mm = 0.08 inch
Pw 11.2mm
