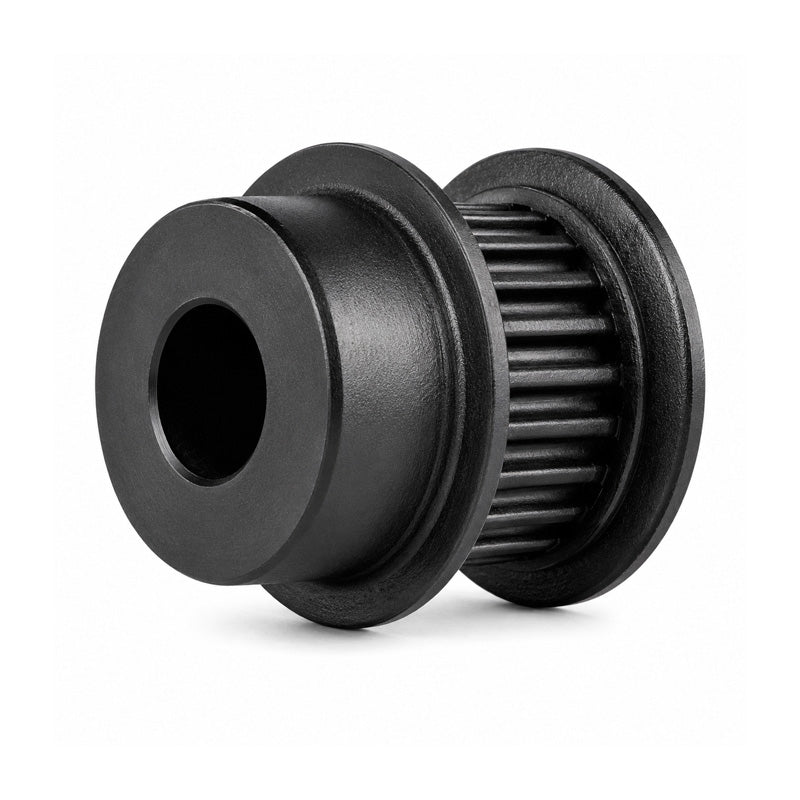

• PP36-MXL-025M - 0.08 inch Pitch 36 Tooth Pilot Bore Polycarbonate (Glass Filled) Timing Pulley for 1/4 inch Wide Belt
1 1

SKU: PP36-MXL-025M

PP36-MXL-025M - 0.08 inch Pitch 36 Tooth Pilot Bore Polycarbonate (Glass Filled) Timing Pulley for 1/4 inch Wide Belt

PP36-MXL-025M - 0.08 inch Pitch 36 Tooth Pilot Bore Polycarbonate (Glass Filled) Timing Pulley for 1/4 inch Wide Belt
$16.30 ex VAT
$16.30 ex VAT
Sale Sold out

Equivalent to: PP36MXL025M

In stock

Price Break
3+ $10.92
5+ $10.31
9+ $10.19
19+ $10.06
49+ $9.94
74+ $9.82
99+ $9.21
199+ $9.08
249+ $8.96
499+ $8.84
999+ $8.59

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Teeth:
36
Material:
Polycarbonate (Glass Filled)
Belt Width Approx:
6.35mm = 0.25 (1/4) inch
Pitch:
2.03mm = 0.08 inch
Item Type:
Flangeless Pilot Bored Pulley
Technical
No.teeth 36
Dp 23.29mm
De 22.78mm
Df 28mm
Dm 17mm
Fw 8mm
L 17.5mm
Bore (d) 8mm
Material Polycarbonate (Glass Filled)
Bore Pilot Bored
Belt Width 6.35mm = 0.25 (1/4) inch
Pitch 2.03mm = 0.08 inch
Pw 11.2mm
