• PP80-MXL-025I - 0.08 inch Pitch 80 Tooth Pilot Bore Polycarbonate (Glass Filled) Timing Pulley with Brass Insert
1 1

SKU: PP80-MXL-025I

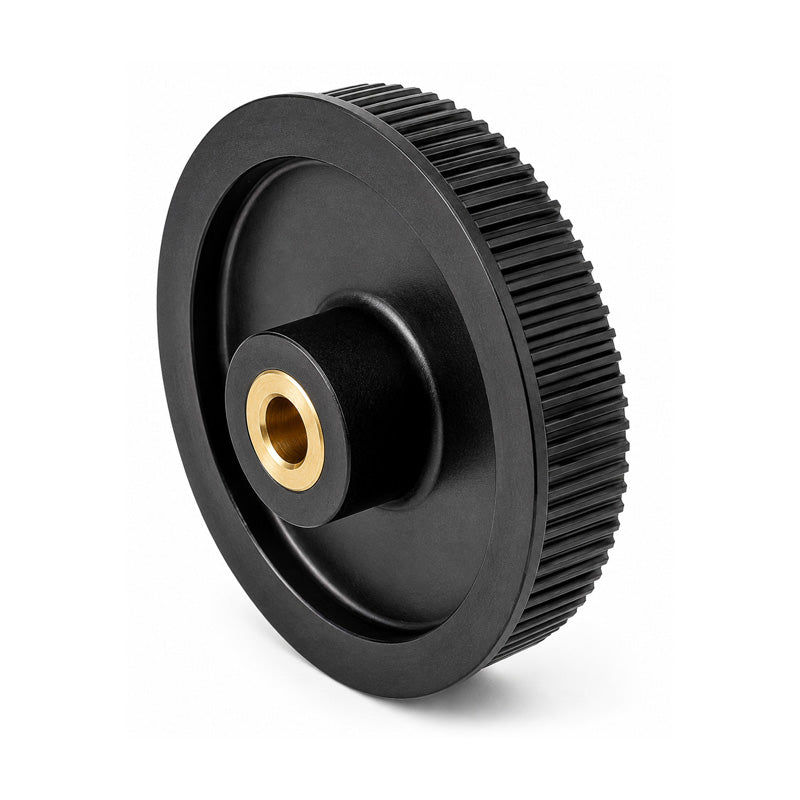

PP80-MXL-025I - 0.08 inch Pitch 80 Tooth Pilot Bore Polycarbonate (Glass Filled) Timing Pulley with Brass Insert

PP80-MXL-025I - 0.08 inch Pitch 80 Tooth Pilot Bore Polycarbonate (Glass Filled) Timing Pulley with Brass Insert
$23.57 ex VAT
$23.57 ex VAT
Sale Sold out

Equivalent to: PP80MXL025I

In stock

Price Break
3+ $15.78
5+ $14.90
9+ $14.72
19+ $14.54
49+ $14.37
74+ $14.19
99+ $13.30
199+ $13.12
249+ $12.95
499+ $12.77
999+ $12.42

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Teeth:
80
Material:
Polycarbonate (Glass Filled)
Belt Width Approx:
6.35mm = 0.25 (1/4) inch
Pitch:
2.03mm = 0.08 inch
Item Type:
Flangeless Pilot Bored Pulley
Technical
No.teeth 80
Dp 2.037 inch
De 2.017 inch
Df 2.21 inch
Dm 0.688 inch
Fw 0.312 inch
L 0.688 inch
Bore (d) 0.25 inch
Gs 1 x 6-32 UNC
Material Polycarbonate (Glass Filled)
Bore Pilot Bored
Pitch 0.08 inch
Pw 0.437 inch
Insert with Brass Insert
K 0.125 inch
