SKU: PPMF141612-EU

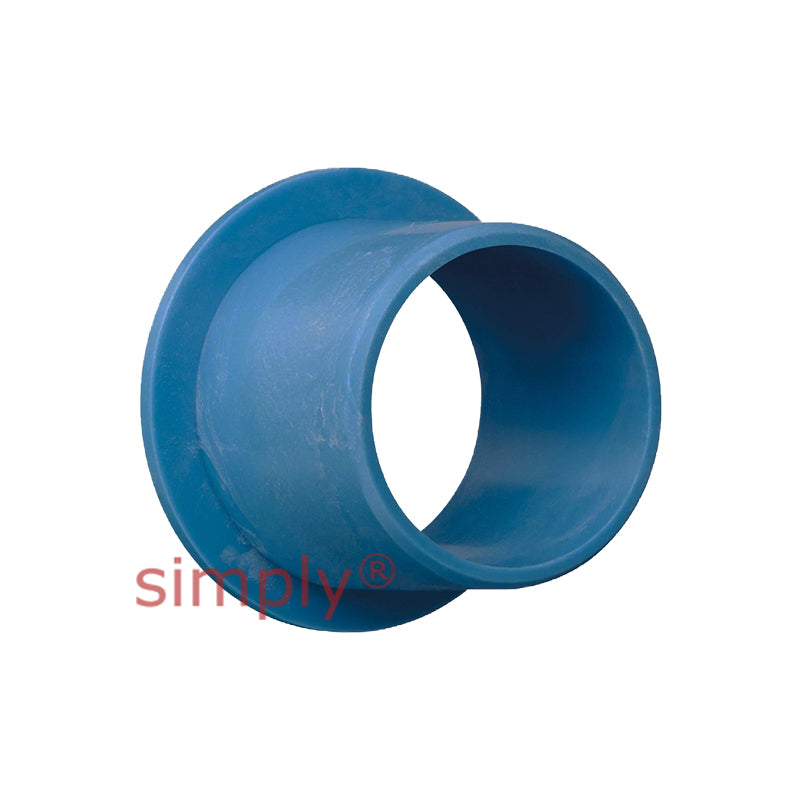

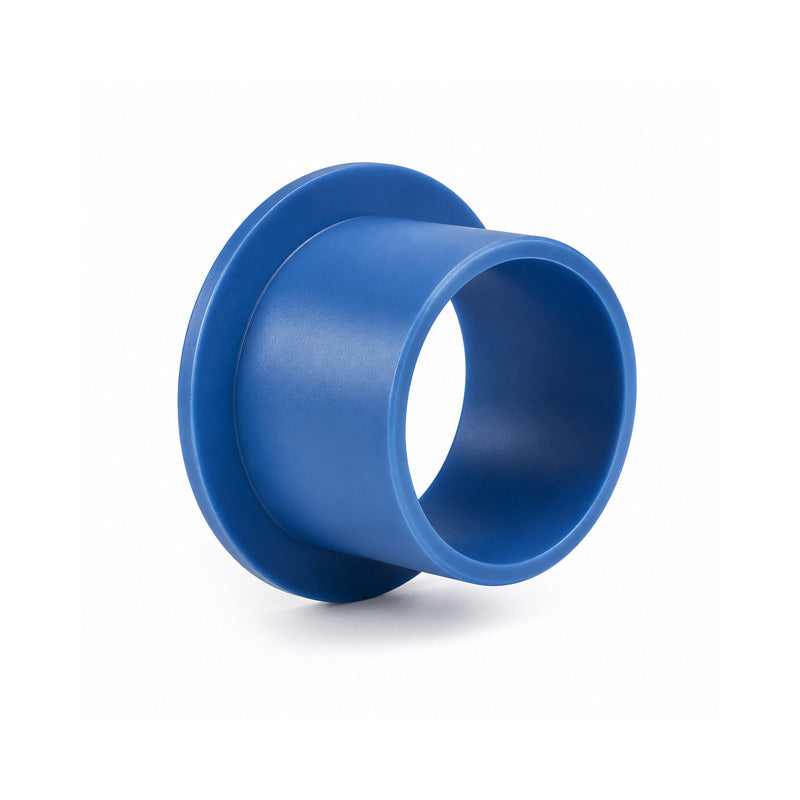

PPMF141612 Premier Budget Metric Polyamide Flanged Bush 14x16x12mm

Name: PPMF141612 Premier Budget Metric Polyamide Flanged Bush 14x16x12mm
Brand: Gen
SKU: PPMF141612-EU
Price: 11.80 USD
Availability: InStock

$11.80 ex VAT

Sale Sold out

In stock

Price Break

9+ $7.91

19+ $7.46

29+ $7.37

39+ $7.29

49+ $7.20

69+ $7.11

99+ $6.66

199+ $6.57

249+ $6.49

499+ $6.40

999+ $6.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 14mm
Outside Diameter:: 16mm
Length:: 12mm

Technical

d	14mm
D	16mm
B	12mm
D1	22mm
B1	1mm
Tolerance shaft	h9
Tolerance housing	H7
Specific Dynamic Load Factor ( K )	40 N/mm 2
Specific Static Load Factor ( K0 )	80 N/mm 2
Permissable Sliding Velocity ( v )	min. 0 m/s
Permissable Sliding Velocity ( v )	max. 1 m/s
Coefficient of Friction ( y )	min. 0.06
Coefficient of Friction ( y )	max. 0.15
Weight	0.001kg
