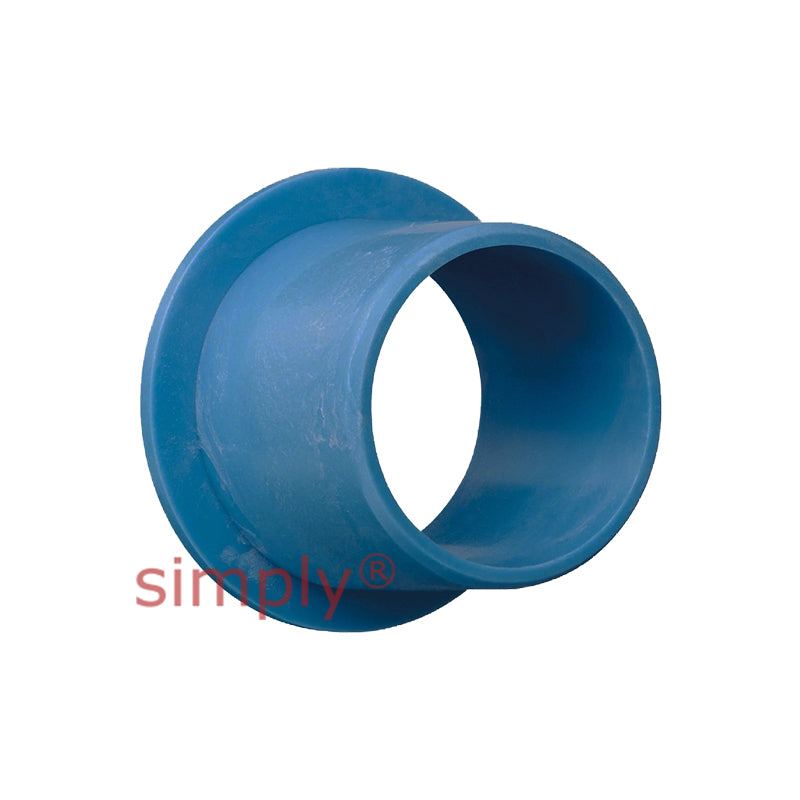

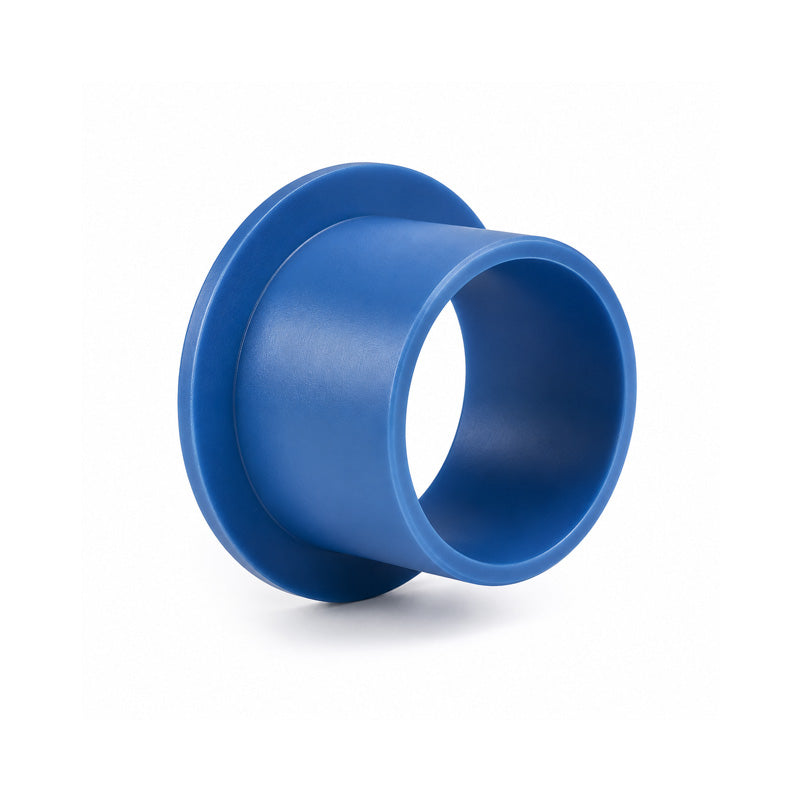

SKF PPMF202311.5 Metric Polyamide Flanged Bush 20x23x11.5mm

PPM/PPMF Polyamide Bushing: The thermoplastic material of SKF PTFE Polyamide cylindrical bushings offers maintenance-free, dry sliding operation. SKF PTFE Polyamide bushings are designed for applications where other polymer bushings have shown insufficient operating life. The small wall thickness of these bushings ensures good heat conducting characteristics, enabling high sliding velocities. SKF offers a standard assortment of both plain and flanged cylindrical bushings according to ISO 3547 and DIN 1494. SKF PTFE Polyamide comprises a thermoplastic base material, with both PTFE additives and glass-fiber. The material mix of SKF PTFE Polyamide bushings results in self-lubricating low wear performance and, in many applications, adequate load capacity. SKF PTFE Polyamide bushings are suitable for applications where cost-effective maintenance-free bushings are preferred.
Uses of Application Textile industry, Medical equipment, fitness equipment, household equipment.

Brand / Quality:

SKF - High Quality

Inside Diameter:

20mm

Outside Diameter:

23mm

Length:

11.5mm
