SKU: PSF40CR-RHP

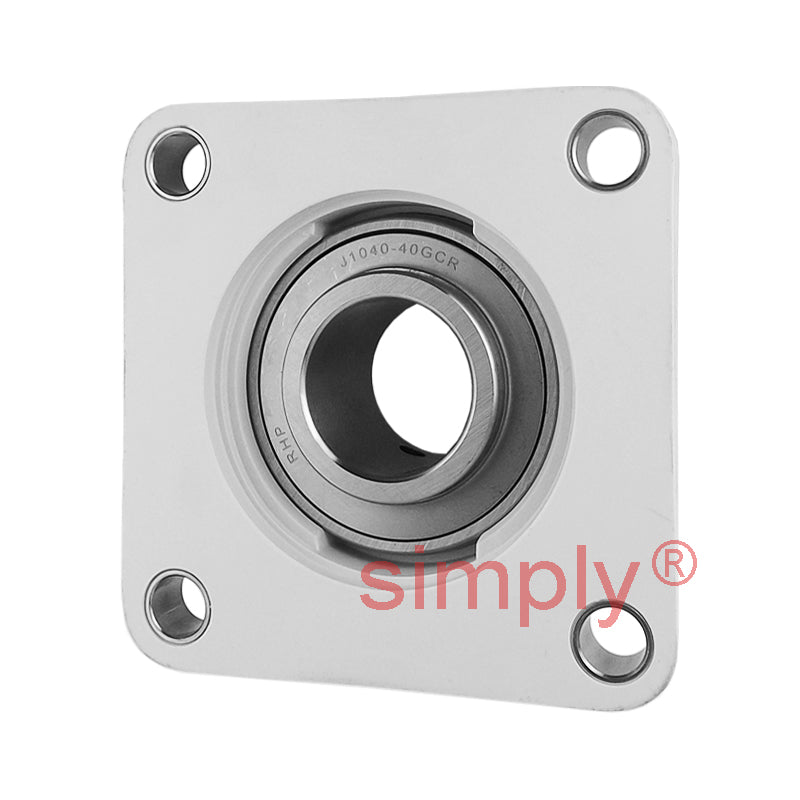

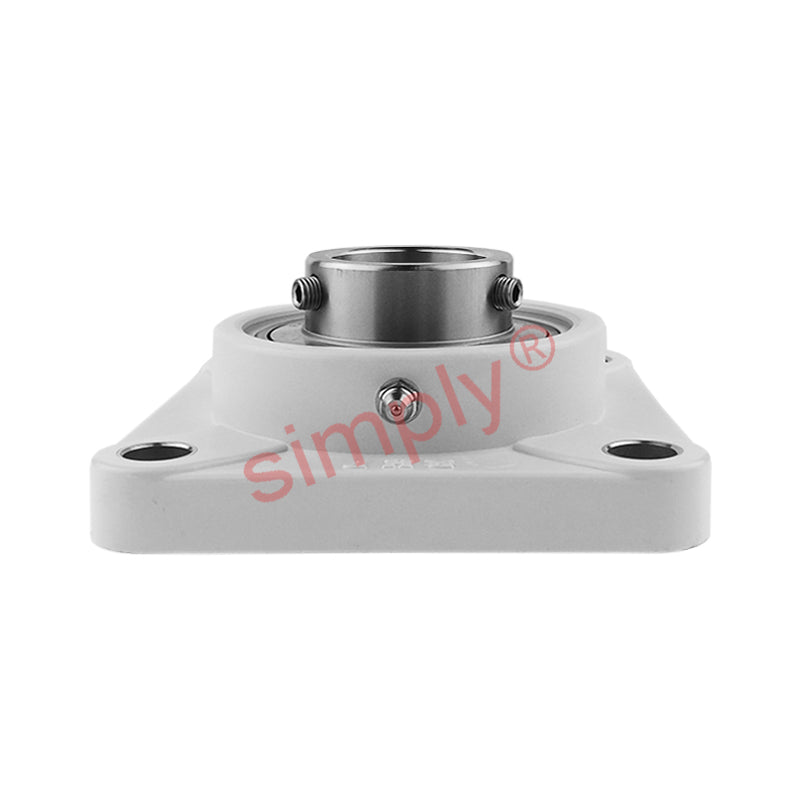

RHP PSF40CR Thermo Plastic Four Bolt Square Flange Housing with 40mm Bore Stainless Insert

RHP PSF40CR Thermo Plastic Four Bolt Square Flange Housing with 40mm Bore Stainless Insert
$206.00 ex VAT
$206.00 ex VAT
Sale Sold out

In stock

Price Break
10+ $137.99
20+ $130.23
30+ $128.68
40+ $127.13
50+ $125.58
75+ $124.03
100+ $116.28
200+ $114.73
250+ $113.18
500+ $111.63
1000+ $108.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
40mm
Style:
PSF
Colour:
White
Bolt Hole Centres:
102mm
Technical
L 130.5mm
J 102mm
G M12
A 37.5mm
A1 53.2mm
A4 17.1mm
B 49.2mm
S 19mm
0.74 0.98 kg
F1 Intermittent Loading 6200 N
F1 Continuous Loading 3100 N
F1 Cyclical Loading 1700 N
F2 Intermittent Loading 4000 N
F2 Continuous Loading 2000 N
F2 Cyclical Loading 1100 N
Max. Fixing Bolt Torque 40 Nm
