SKU: PSFT30CR-RHP

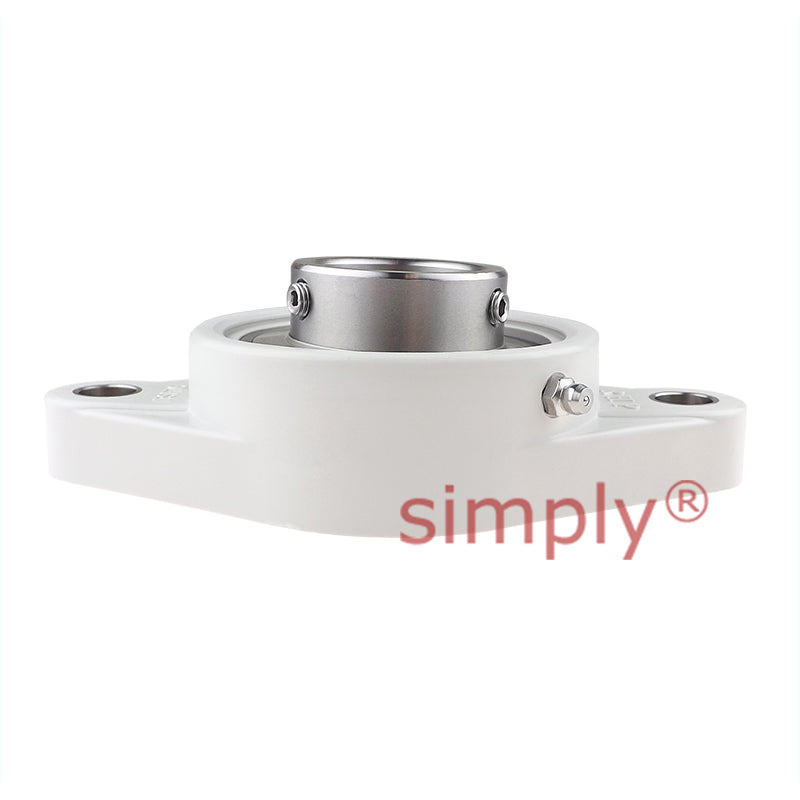

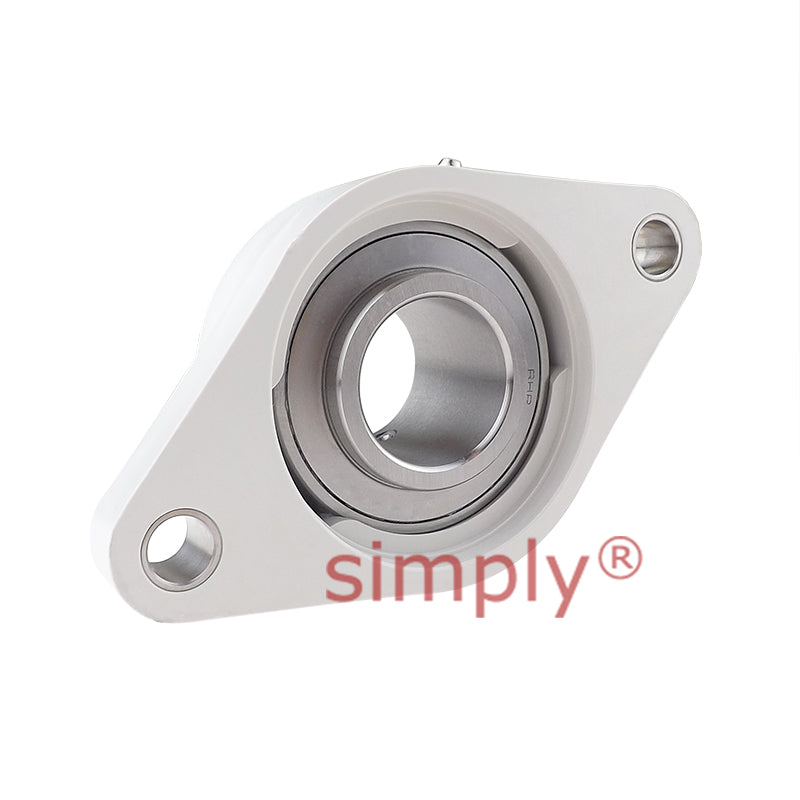

RHP PSFT30CR Thermo Plastic Two Bolt Oval Flange Housing with 30mm Bore Stainless Insert - Allow 2-3 Days
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
RHP PSFT Series Thermo Plastic 2 Bolt Oval Flange Housings: Bearing units supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required. The Silver-Lube series is a range of corrosion-resistant bearing units specifically for use in industries where frequent thorough washdowns are necessary, optimum hygiene standards are required and good chemical resistance is important over a wide temperature range. Silver-Lube housings are made from PBT thermoplastic resin which, in addition to being non-corrodible, is resistant to detergents and a wide range of chemicals. The housings are paint and coating free which prevents chipping or flaking and have smooth surfaces to assist thorough washdowns. The Silver-Lube® bearing inserts are made from stainless steel, are provided with effective, efficient sealing arrangements and are charged with an aluminium complex, high temperature approved food grade grease as standard.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food-safe and approved
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Style:
- PSFT
- Colour:
- White
- Bolt Hole Centres:
- 117mm
Technical
| L | 80.1mm |
|---|---|
| H | 148.3mm |
| J | 117mm |
| G | M10 |
| A | 30.5mm |
| A1 | 41.2mm |
| A4 | 13.4mm |
| B | 38.1mm |
| 14.3 | 15.9mm |
| Approx weight kg | 0.44 kg |
| T1 Intermittent Loading | 5900 N |
| T1 Continuous Loading | 2900 N |
| T1 Cyclical Loading | 1600 N |
| T2 Intermittent Loading | 3300 N |
| T2 Continuous Loading | 1600 N |
| T2 Cyclical Loading | 900 N |
| T3 Intermittent Loading | 2000 N |
| T3 Continuous Loading | 1000 N |
| T3 Cyclical Loading | 500 N |
| Max. Fixing Bolt Torque | 30 Nm |
