SKU: PSFT40CR-RHP

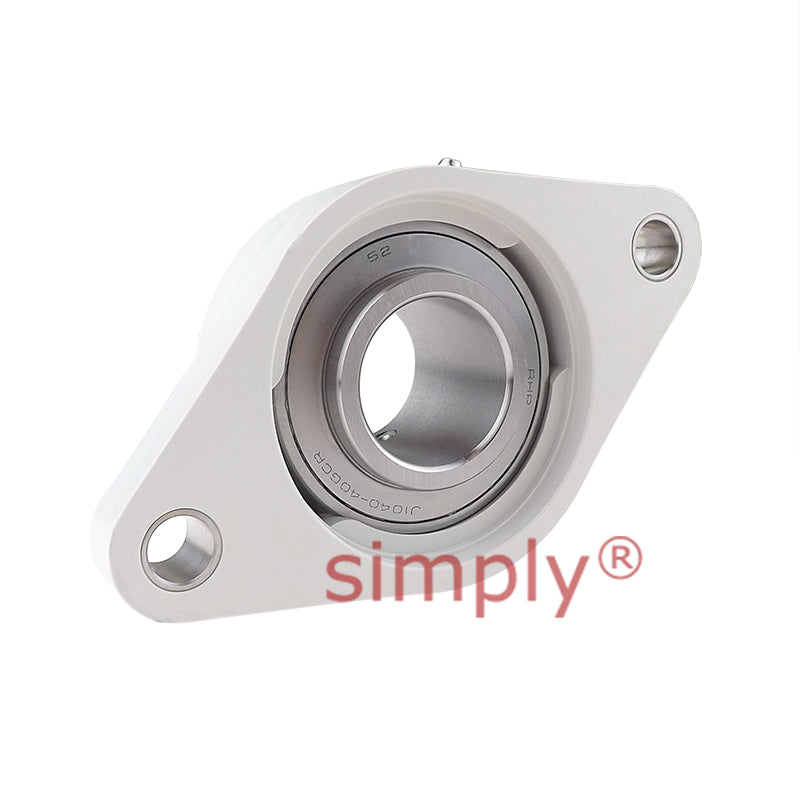

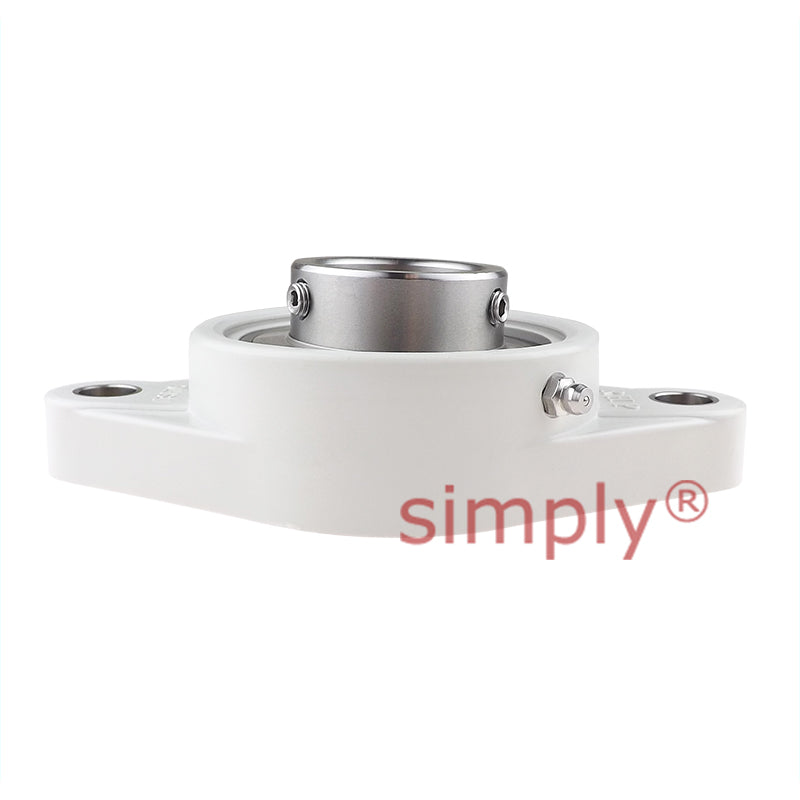

RHP PSFT40CR Thermo Plastic Two Bolt Oval Flange Housing with 40mm Bore Stainless Insert

RHP PSFT40CR Thermo Plastic Two Bolt Oval Flange Housing with 40mm Bore Stainless Insert
$176.30 ex VAT
$176.30 ex VAT
Sale Sold out

In stock

Price Break
10+ $118.09
20+ $111.46
30+ $110.13
40+ $108.80
50+ $107.48
75+ $106.15
100+ $99.51
200+ $98.19
250+ $96.86
500+ $95.53
1000+ $92.88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
40mm
Style:
PSFT
Colour:
White
Bolt Hole Centres:
144mm
Technical
L 100.1mm
H 175.3mm
J 144mm
G M12
A 37.5mm
A1 51.7mm
A4 20mm
B 49.2mm
17.5 19mm
Approx weight kg 0.89 kg
T1 Intermittent Loading 9000 N
T1 Continuous Loading 4500 N
T1 Cyclical Loading 2500 N
T2 Intermittent Loading 3900 N
T2 Continuous Loading 2000 N
T2 Cyclical Loading 1100 N
T3 Intermittent Loading 3300 N
T3 Continuous Loading 1600 N
T3 Cyclical Loading 900 N
Max. Fixing Bolt Torque 40 Nm
