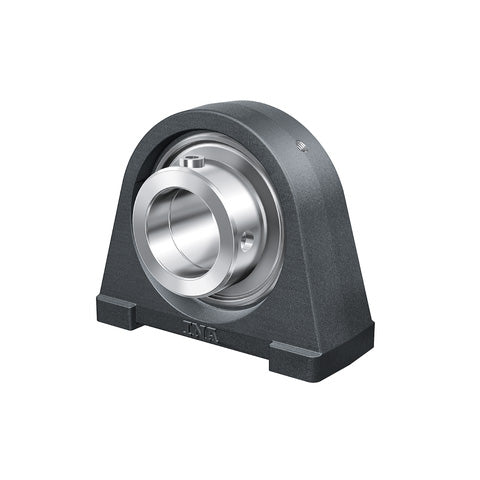

• INA PSHE25TVFA125.5 Plastic Threaded Base Plummer Block Housing with Eccentric Collar and Anti-Corrosion Protection 25mm Bore
  • INA
1 2

SKU: PSHE25-TV-FA125.5-INA

INA PSHE25TVFA125.5 Plastic Threaded Base Plummer Block Housing with Eccentric Collar and Anti-Corrosion Protection 25mm Bore

INA PSHE25TVFA125.5 Plastic Threaded Base Plummer Block Housing with Eccentric Collar and Anti-Corrosion Protection 25mm Bore
$82.46 ex VAT
$82.46 ex VAT
Sale Sold out

In stock

Price Break
4+ $55.22
9+ $52.12
19+ $51.50
29+ $50.88
39+ $50.26
49+ $49.64
59+ $46.54
69+ $45.92
79+ $45.30
89+ $44.68
99+ $43.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This plastic housing is a single-piece unit which features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a short base and is screw mounted to the adjacent construction by blind threaded holes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. The insert bearing has a Corrotect® coating which makes this suitable for use if moisture, contaminated water, salt spray mist, weakly alkaline or weakly acidic cleaning agents are present.
Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft, corrosion-resistant.
Brand / Quality:
INA - High Quality
Inside Diameter:
25mm
Style:
PSHE
Bolt Hole Centres:
50.8mm
Technical
d 25mm
L 76.2mm
H2 73.5mm
A 39.5mm
B1 31mm
d3 max 37.5mm
H 36.5mm
J 50.8mm
K M10
Q 1/4 - 28 UNF
S1 23.5mm
Mass 0.35 kg
Basic dynamic load rating Cr 14900 N
Basic static load rating Cor 7800 N
Load carrying capacity of housing Cor G 7000 N
Designation of housing GEH.SHE05-TV
Designation of bearing GRAE25-NPP-B-FA107/125.5
Bearing end cap, closed design KASK05-S-G
Bearing end cap (available by agreement) KASK05-S-R-NBR
