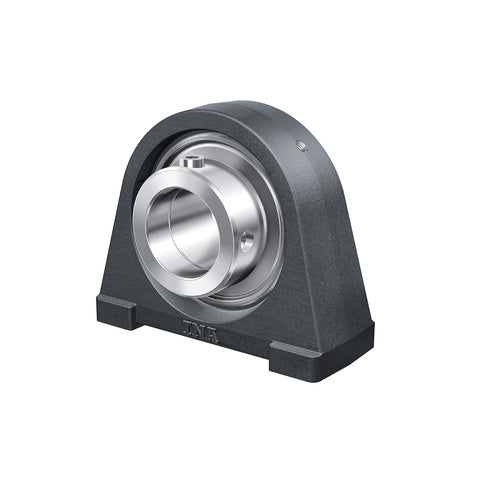

• INA PSHE45XL Cast Iron Threaded Base Plummer Block Housing with Eccentric Collar Insert 45mm Bore
  • INA
1 2

SKU: PSHE45-XL-INA

INA PSHE45XL Cast Iron Threaded Base Plummer Block Housing with Eccentric Collar Insert 45mm Bore

INA PSHE45XL Cast Iron Threaded Base Plummer Block Housing with Eccentric Collar Insert 45mm Bore
$107.24 ex VAT
$107.24 ex VAT
Sale Sold out

In stock

Price Break
4+ $71.83
9+ $67.80
19+ $66.99
29+ $66.18
39+ $65.38
49+ $64.57
59+ $60.53
69+ $59.73
79+ $58.92
89+ $58.11
99+ $56.50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This cast iron housing is a single-piece unit with a high load carrying capacity and features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a short base and is screw mounted to the adjacent construction by blind threaded holes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: High load carrying capacity, re-lubricatable, eccentric collar, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
45mm
Style:
PSHE
Bolt Hole Centres:
95.3mm
Technical
d 45mm
L 120mm
H2 107mm
A 48mm
A1 32mm
B1 43.8mm
d3 max 63mm
H 54mm
J 95.3mm
K M12
Q M6
S1 32.8mm
Mass 2.14 kg
Basic dynamic load rating Cr 34500 N
Basic static load rating Cor 20400 N
Designation of housing SHE09
Designation of bearing GRAE45-XL-NPP-B
