SKU: PSMF354520A51-EU

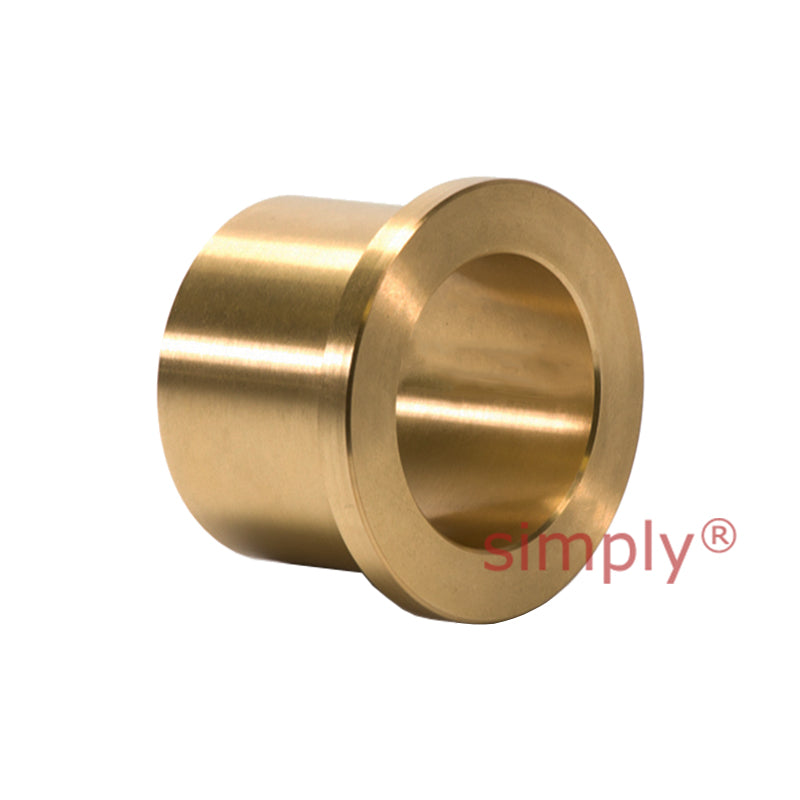

PSMF354520A51 Premier Budget Metric Flanged Sintered Bronze Bush 35x45x20mm

Name: PSMF354520A51 Premier Budget Metric Flanged Sintered Bronze Bush 35x45x20mm
Brand: Gen
SKU: PSMF354520A51-EU
Price: 12.65 USD
Availability: InStock

$12.65 ex VAT

Sale Sold out

Equivalent to: SBK 035/045 X 020

In stock

Price Break

9+ $8.47

19+ $7.99

29+ $7.90

39+ $7.80

49+ $7.71

69+ $7.61

99+ $7.14

199+ $7.04

249+ $6.95

499+ $6.85

999+ $6.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 35mm
Outside Diameter:: 45mm
Length:: 20mm

Technical

d	35mm
D	45mm
B	20mm
D1	55mm
B1	5mm
Tolerance shaft	h8
Tolerance housing	H7
Specific Dynamic Load Factor ( K )	10 N/mm 2
Specific Static Load Factor ( K0 )	20 N/mm 2
Permissable Sliding Velocity ( v )	min. 0.25 m/s
Permissable Sliding Velocity ( v )	max. 5 m/s
Coefficient of Friction ( y )	min. 0.05
Coefficient of Friction ( y )	max. 0.1
Weight	0.1kg
