SKU: PST35CR-RHP

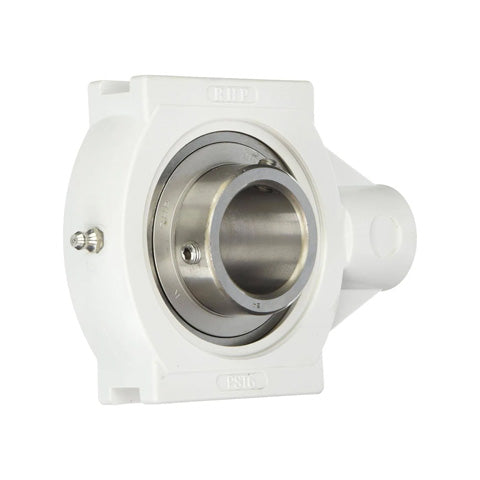

RHP PST35CR Thermo Plastic Take Up Unit Housing with 35mm Bore Stainless Insert - Allow 2-3 Days
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
RHP PST Series Thermo Plastic Take Up Unit Housings: Bearing units supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required. The Silver-Lube series is a range of corrosion-resistant bearing units specifically for use in industries where frequent thorough washdowns are necessary, optimum hygiene standards are required and good chemical resistance is important over a wide temperature range. Silver-Lube housings are made from PBT thermoplastic resin which, in addition to being non-corrodible, is resistant to detergents and a wide range of chemicals. The housings are paint and coating free which prevents chipping or flaking and have smooth surfaces to assist thorough washdowns. The Silver-Lube® bearing inserts are made from stainless steel, are provided with effective, efficient sealing arrangements and are charged with an aluminium complex, high temperature approved food grade grease as standard.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food-safe and approved
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- PST
- Colour:
- White
Technical
| L | 125mm |
|---|---|
| L1 | 76mm |
| L4 | 63mm |
| H | 102mm |
| H1 | 40mm |
| H3 | 88.8mm |
| G | M16X2mm |
| G1 | 22.5mm |
| 34.5 | 34.5mm |
| A1 | 30mm |
| A2 | 12.2mm |
| B | 42.9mm |
| S | 17.5mm |
| Approx weight kg | 0.74 kg |
| U Intermittent Loading | 7800 N |
| U Continuous Loading | 3900 N |
| U Cyclical Loading | 2200 N |
