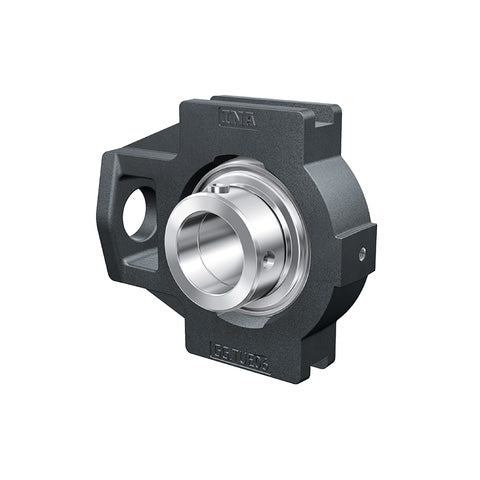

INA PTUE20TVFA125.5 Plastic Take Up Unit with Eccentric Collar Insert 20mm Bore

Name: INA PTUE20TVFA125.5 Plastic Take Up Unit with Eccentric Collar Insert 20mm Bore
Brand: INA
SKU: PTUE20-TV-FA125.5-INA
Price: 69.62 USD
Availability: InStock

$69.62 ex VAT

Sale Sold out

In stock

Price Break

4+ $46.64

9+ $44.02

19+ $43.49

29+ $42.97

39+ $42.44

49+ $41.92

59+ $39.30

69+ $38.78

79+ $38.25

89+ $37.73

99+ $36.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 20mm
Style:: PTUE

Technical

d	20mm
L	99mm
H	89mm
A1	12mm
A2	27.5mm
B1	31mm
d3 max	33mm
H1	76mm
K	M16?
L1	64mm
L3	47mm
Q	1/4 - 28 UNF?
S1	23.5mm
T	36mm
Mass	0.4 kg
Basic dynamic load rating Cr	13600 N
Basic static load rating Cor	6600 N
Load carrying capacity of housing Cor G	9600 N
Designation of housing	GEH.TUE04-TV?
Designation of bearing	GRAE20-NPP-B-FA107/125.5?
Bearing end cap, closed design	KASK04-S-G?
Bearing end caps, open design, with integral rotary shaft seal (available by agreement)	KASK04-S-R-NBR?
