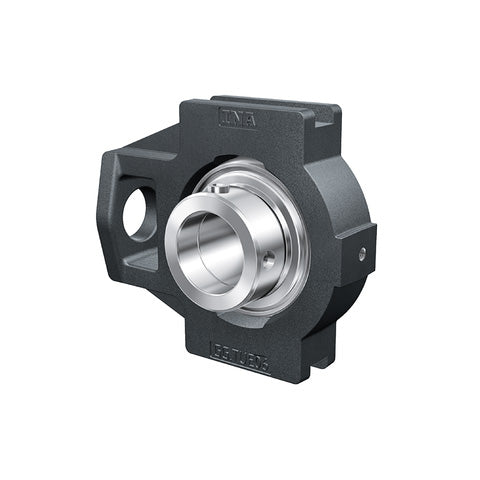

• INA PTUE20XL Cast Iron Take Up Unit with Eccentric Collar Insert 20mm Bore
  • INA
1 2

SKU: PTUE20-XL-INA

INA PTUE20XL Cast Iron Take Up Unit with Eccentric Collar Insert 20mm Bore

INA PTUE20XL Cast Iron Take Up Unit with Eccentric Collar Insert 20mm Bore
$47.51 ex VAT
$47.51 ex VAT
Sale Sold out

In stock

Price Break
4+ $31.83
9+ $30.04
19+ $29.68
29+ $29.32
39+ $28.97
49+ $28.61
59+ $26.82
69+ $26.46
79+ $26.10
89+ $25.75
99+ $25.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
20mm
Style:
PTUE
Technical
d 20mm
L 94.5mm
H 90mm
A 37mm
A1 12mm (Tolerance: H13)
A2 25mm
B1 31mm
d3 max 33mm
H1 76mm (Tolerance: +/-0.15)
L1 60mm
L2 9mm
L3 50mm
N 19mm
N1 18mm
N2 32mm
Q M6
S1 23.5mm
T 51mm
Mass 0.83 kg
Basic dynamic load rating Cr 13600 N
Basic static load rating Cor 6600 N
Designation of housing TUE04
Designation of bearing GRAE20-XL-NPP-B
