SKU: PTUE40-TV-FA125.5-INA

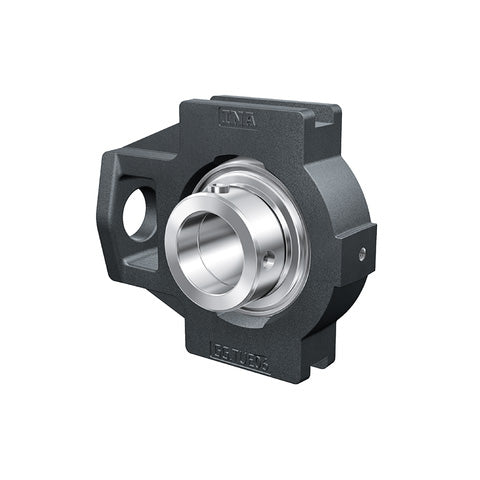

INA PTUE40TVFA125.5 Plastic Take Up Unit with Eccentric Collar Insert 40mm Bore

Name: INA PTUE40TVFA125.5 Plastic Take Up Unit with Eccentric Collar Insert 40mm Bore
Brand: INA
SKU: PTUE40-TV-FA125.5-INA
Price: 118.85 USD
Availability: InStock

$118.85 ex VAT

Sale Sold out

In stock

Price Break

4+ $79.61

9+ $75.14

19+ $74.24

29+ $73.35

39+ $72.45

49+ $71.56

59+ $67.09

69+ $66.19

79+ $65.30

89+ $64.40

99+ $62.62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 40mm
Style:: PTUE

Technical

d	40mm
L	140mm
H	113mm
A1	16mm
A2	33.5mm
B1	43.8mm
d3 max	58mm
H1	102mm
K	M16?
L1	85mm
L3	80mm
Q	1/4 - 28 UNF?
S1	32.8mm
T	40mm
Mass	1.05 kg
Basic dynamic load rating Cr	34500 N
Basic static load rating Cor	19800 N
Load carrying capacity of housing Cor G	11200 N
Designation of housing	GEH.TUE08-TV?
Designation of bearing	GRAE40-NPP-B-FA107/125.5?
Bearing end cap, closed design	KASK08-S-G?
Bearing end caps, open design, with integral rotary shaft seal (available by agreement)	KASK08-S-R-NBR?
