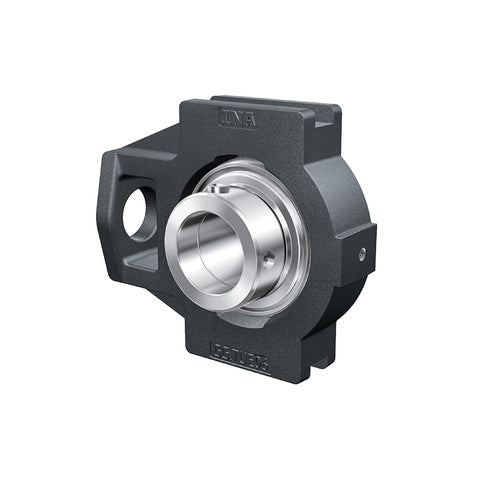

• INA PTUE45XL Cast Iron Take Up Unit with Eccentric Collar Insert 45mm Bore
  • INA
1 2

SKU: PTUE45-XL-INA

INA PTUE45XL Cast Iron Take Up Unit with Eccentric Collar Insert 45mm Bore

INA PTUE45XL Cast Iron Take Up Unit with Eccentric Collar Insert 45mm Bore
$104.44 ex VAT
$104.44 ex VAT
Sale Sold out

In stock

Price Break
4+ $69.95
9+ $66.02
19+ $65.24
29+ $64.45
39+ $63.67
49+ $62.88
59+ $58.95
69+ $58.16
79+ $57.38
89+ $56.59
99+ $55.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
45mm
Style:
PTUE
Technical
d 45mm
L 141mm
H 115mm
A 50mm
A1 16mm (Tolerance: H13)
A2 35mm
B1 43.8mm
d3 max 63mm
H1 102mm (Tolerance: +/-0.15)
L1 88mm
L2 16mm
L3 82mm
N 29mm
N1 20mm
N2 49mm
Q M6
S1 32.8mm
T 82mm
Mass 2.32 kg
Basic dynamic load rating Cr 34500 N
Basic static load rating Cor 20400 N
Designation of housing TUE09
Designation of bearing GRAE45-XL-NPP-B
