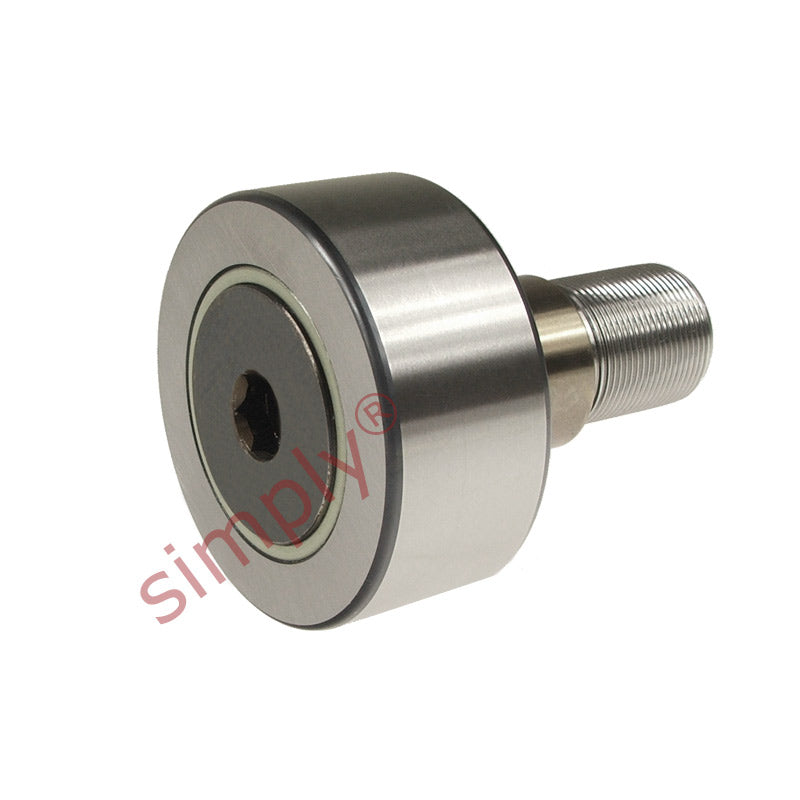

• Budget PWKRE722RS Crowned Cam Follower with Eccentric Stud 72x28x28 M24x1.5 Thread
1 1

SKU: PWKRE72.2RS-EU

Budget PWKRE722RS Crowned Cam Follower with Eccentric Stud 72x28x28 M24x1.5 Thread

Budget PWKRE722RS Crowned Cam Follower with Eccentric Stud 72x28x28 M24x1.5 Thread
$236.39 ex VAT
$236.39 ex VAT
Sale Sold out

In stock

Price Break
10+ $158.34
19+ $149.45
29+ $147.67
39+ $145.89
49+ $144.11
74+ $142.33
99+ $133.44
199+ $131.66
249+ $129.88
499+ $128.10
999+ $124.54

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Outside Diameter:
72mm
Width:
28mm
Pitch:
M24x1.5
Technical
D 72mm
C 28mm
d (Stud Diameter) 28mm
B 80mm
B1 49.5mm
C1 1.3mm
d1 44mm
G M24x1.5
G1 25mm
r min 1.1mm
SW 14mm
Eccentric stud c 1mm
B3 22mm
Dynamic load 39600 N
Static load 45000 N
Fatigue load limit Pu 5600 N
Radial dynamic load 47500 N
Radial static load 68000 N
Speed rating 2200 rpm
Weight 1050 g
