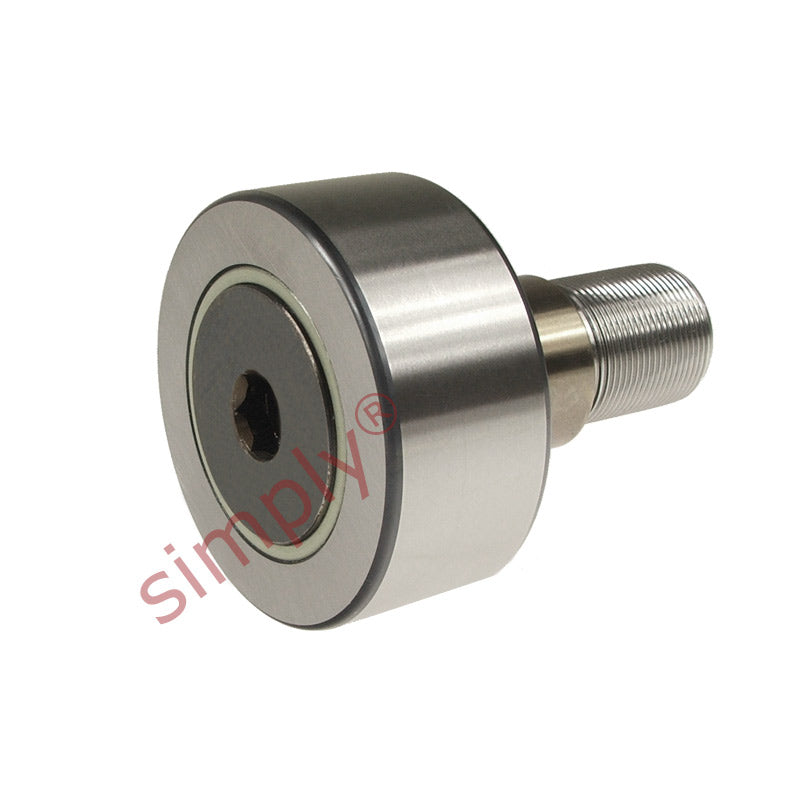

• Budget PWKRE802RS Crowned Cam Follower with Eccentric Stud 80x35x35 M30x1.5 Thread
1 1

SKU: PWKRE80.2RS-EU

Budget PWKRE802RS Crowned Cam Follower with Eccentric Stud 80x35x35 M30x1.5 Thread

Budget PWKRE802RS Crowned Cam Follower with Eccentric Stud 80x35x35 M30x1.5 Thread
$294.67 ex VAT
$294.67 ex VAT
Sale Sold out

In stock

Price Break
10+ $197.38
19+ $186.29
29+ $184.07
39+ $181.86
49+ $179.64
74+ $177.42
99+ $166.33
199+ $164.11
249+ $161.90
499+ $159.68
999+ $155.24

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Outside Diameter:
80mm
Width:
35mm
Pitch:
M30x1.5
Technical
D 80mm
C 35mm
d (Stud Diameter) 35mm
B 100mm
B1 63mm
C1 1mm
d1 47mm
G M30x1.5
G1 32mm
r min 1.1mm
SW 14mm
Eccentric stud c 1.5mm
B3 29mm
Dynamic load 57200 N
Static load 73500 N
Fatigue load limit Pu 9300 N
Radial dynamic load 64000 N
Radial static load 91500 N
Speed rating 1800 rpm
Weight 1670 g
