SKU: QJ.1284

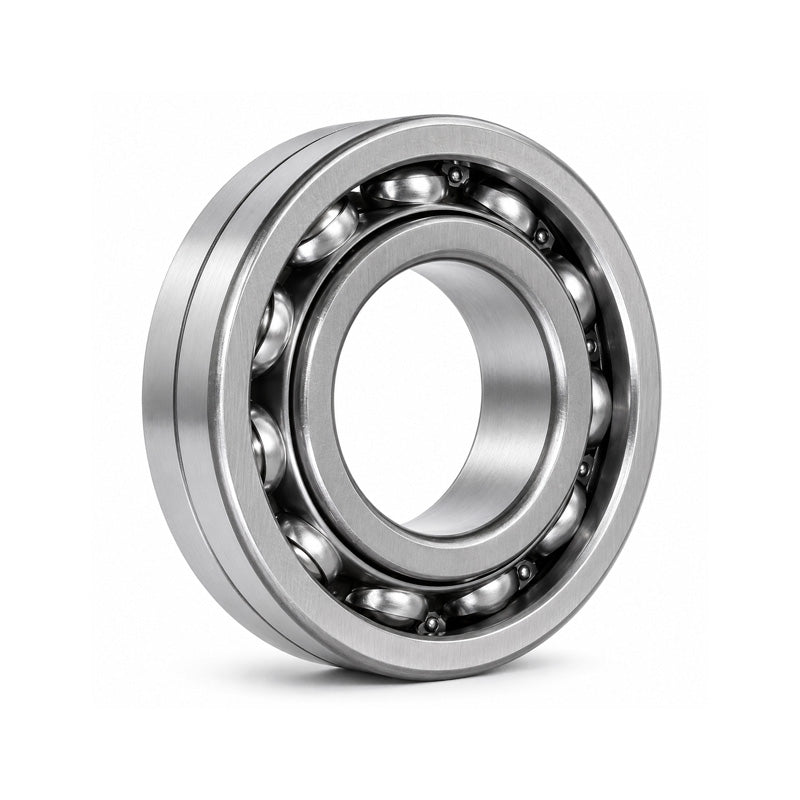

Premier Budget QJ1284 Four Point Contact Ball Bearing (Two Part Outer Race) 420x760x150mm
Premier Budget QJ1284 Four Point Contact Ball Bearing (Two Part Outer Race) 420x760x150mm
Out of stock
Share this product
Description
Description
Four Point Contact Ball Bearings: Are radial single row angular contact ball bearings with raceways that are designed to tolerate axial load in both directions. The inner raceways of these bearings are separable for ease of mounting. This style of bearing takes up considerably less space than the double row ball bearing of equivalent bore size
Benefits: Supports axial loads in both directions, ease of mounting.
Benefits: Supports axial loads in both directions, ease of mounting.
- Brand / Quality:
- Premier Budget - High Quality
- Inside Diameter:
- 420mm
- Outside Diameter:
- 760mm
- Width:
- 150mm
Technical
Technical
| d | 420mm |
|---|---|
| D | 760mm |
| B | 150mm |
| Dynamic Load | 1430 kN |
| Static Load | 650 kN |
| Speed in grease max | 500 rpm |
| Speed in oil max dia | 650 rpm |
| Weight | 315 kg |
