SKU: QJ.240.N2.MPA.C3.MB

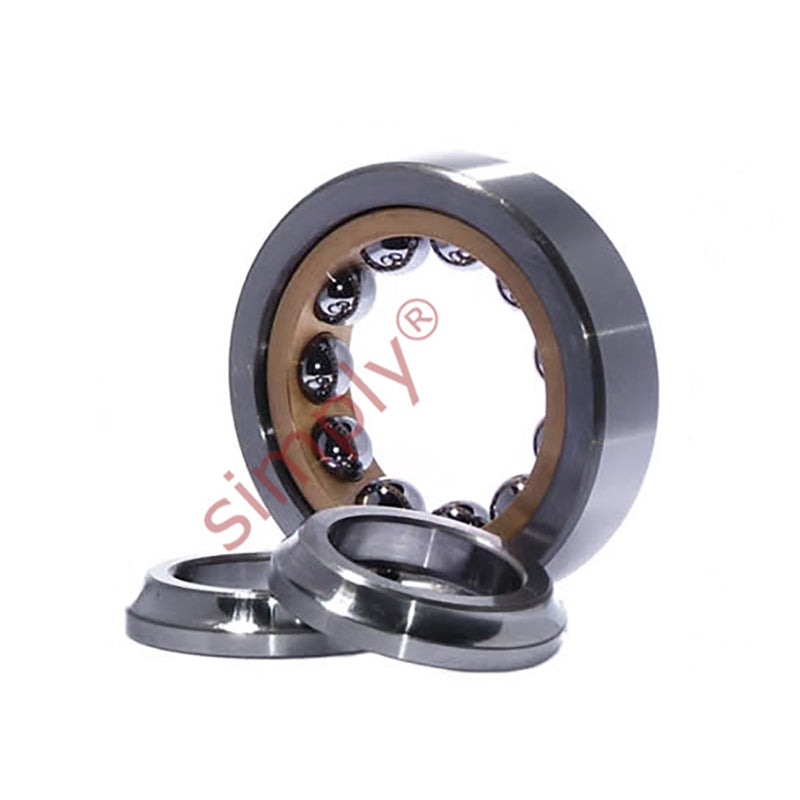

QJ240N2MPAC3 Four Point Contact Ball Bearing 200x360x58mm
- Regular price
- $4,743.72 ex VAT
- Sale price
- $4,743.72
- Regular price
-
Not in stock
Quantity Price Breaks
10
$4,221.91
19
$3,984.72
29
$3,937.29
39
$3,889.85
49
$3,842.41
74
$3,794.98
99
$3,557.79
199
$3,510.35
249
$3,462.92
499
$3,415.48
999
$3,320.60
SKU:
QJ.240.N2.MPA.C3.MB
QJ240N2MPAC3 Four Point Contact Ball Bearing 200x360x58mm
- Regular price
- $4,743.72 ex VAT
- Sale price
- $4,743.72
- Regular price
-
Description
Four Point Contact Ball Bearings: Are radial single row angular contact ball bearings with raceways that are designed to tolerate axial load in both directions. The inner raceways of these bearings are separable for ease of mounting. This style of bearing takes up considerably less space than the double row ball bearing of equivalent bore size
Benefits: Supports axial loads in both directions, ease of mounting.
Benefits: Supports axial loads in both directions, ease of mounting.
Technical
| d | = | 200mm |
| D | = | 360mm |
| B | = | 58mm |
| r1r2 min | = | 4 |
| a | = | 196 |
| an | = | 12.7 |
| bn | = | 10.5 |
| rn | = | 2 |
| Dynamic load | = | 703 kN |
| Static load | = | 1134 kN |
| Cu | = | 30.8 kN |
| Reference speed | = | 1400 rpm |
| Limiting speed | = | 3000 rpm |
| Weight | = | 28.3kg |
