SKU: QJ228N2MA-SKF

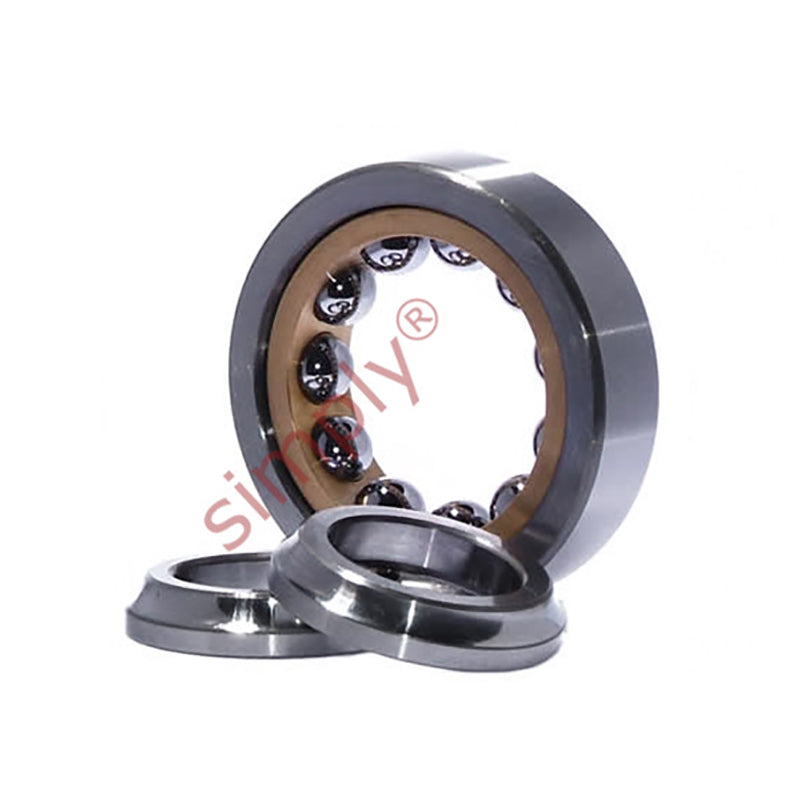

SKF QJ228N2MA Four Point Contact Ball Bearing with Locating Slots and Brass Cage 140x250x42mm
SKF QJ228N2MA Four Point Contact Ball Bearing with Locating Slots and Brass Cage 140x250x42mm
Regular price
$1,501.76
ex VAT
Regular price
Sale price
$1,501.76
ex VAT
In stock
Price Break
10+
$1,005.92
19+
$949.41
29+
$938.10
39+
$926.80
49+
$915.50
74+
$904.20
99+
$847.68
199+
$836.38
249+
$825.08
499+
$813.78
999+
$791.17
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SKF Four Point Contact Ball Bearings: Are radial single-row angular contact ball bearings with raceways that are designed to tolerate axial load in both directions. The inner raceways of these bearings are separable for ease of mounting. This style of bearing takes up considerably less space than the double-row ball bearing of equivalent bore size.
Benefits: Supports axial loads in both directions, ease of mounting.
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 140mm
- Outside Diameter:
- 250mm
- Width:
- 42mm
- Clearance:
- * Standard
Technical
Technical
| d | 140mm |
|---|---|
| D | 250mm |
| B | 42mm |
| Dynamic load C | 325 kN |
| Static load Co | 440 kN |
| Fatigue load limit Pu | 13.2 kN |
| Reference speed | 2600 rpm |
| Limiting speed | 4300 rpm |
| Weight | 9.85 kg |
| d1 | 179mm |
| D1 | 211mm |
| r1r2 min | 3mm |
| a | 137mm |
| b | 10.5mm |
| h | 11.7mm |
| ro | 2mm |
| da min | 154mm |
| Da max | 236mm |
| ra max | 2.5mm |
