SKU: QJ314N2MA/C2L-SKF

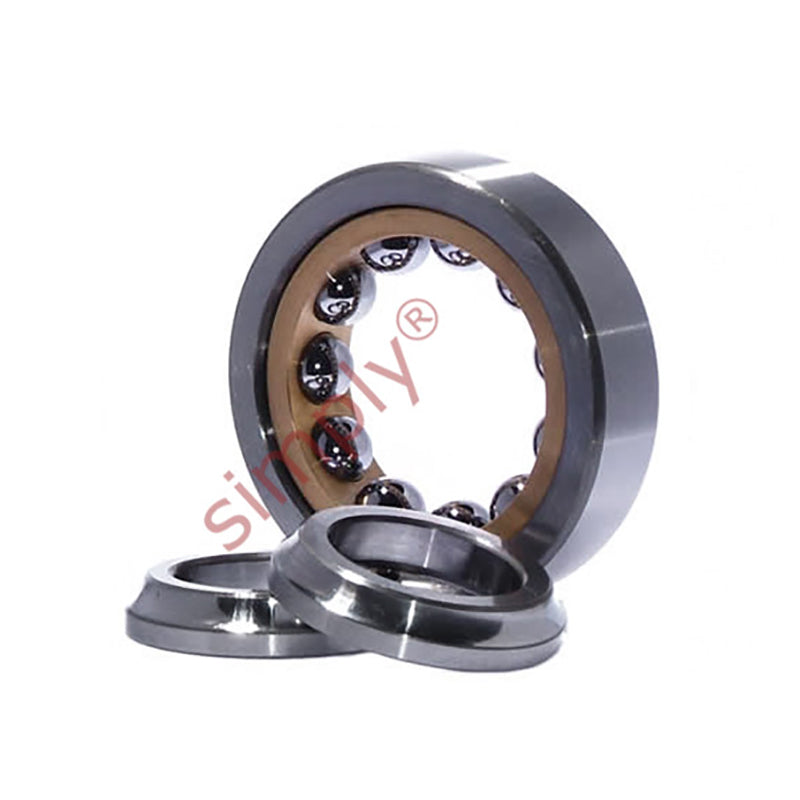

SKF QJ314N2MAC2L Four Point Contact Ball Bearing with Locating Slots and Brass Cage 70x150x35mm
SKF QJ314N2MAC2L Four Point Contact Ball Bearing with Locating Slots and Brass Cage 70x150x35mm
Regular price
$469.07
ex VAT
Regular price
Sale price
$469.07
ex VAT
In stock
Price Break
10+
$314.20
19+
$296.55
29+
$293.02
39+
$289.49
49+
$285.96
74+
$282.43
99+
$264.78
199+
$261.25
249+
$257.71
499+
$254.18
999+
$247.12
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SKF Four Point Contact Ball Bearings: Are radial single-row angular contact ball bearings with raceways that are designed to tolerate axial load in both directions. The inner raceways of these bearings are separable for ease of mounting. This style of bearing takes up considerably less space than the double-row ball bearing of equivalent bore size.
Benefits: Supports axial loads in both directions, ease of mounting.
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Clearance:
- * Standard
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| B | 35mm |
| Dynamic load C | 200 kN |
| Static load Co | 180 kN |
| Fatigue load limit Pu | 6.7 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 8000 rpm |
| Weight | 3.15 kg |
| d1 | 89mm |
| D1 | 123mm |
| r1r2 min | 2.1mm |
| a | 77mm |
| b | 8.5mm |
| h | 10.1mm |
| ro | 2mm |
| da min | 82mm |
| Da max | 138mm |
| ra max | 2mm |
