SKU: QRFF-12-HQ12-MB

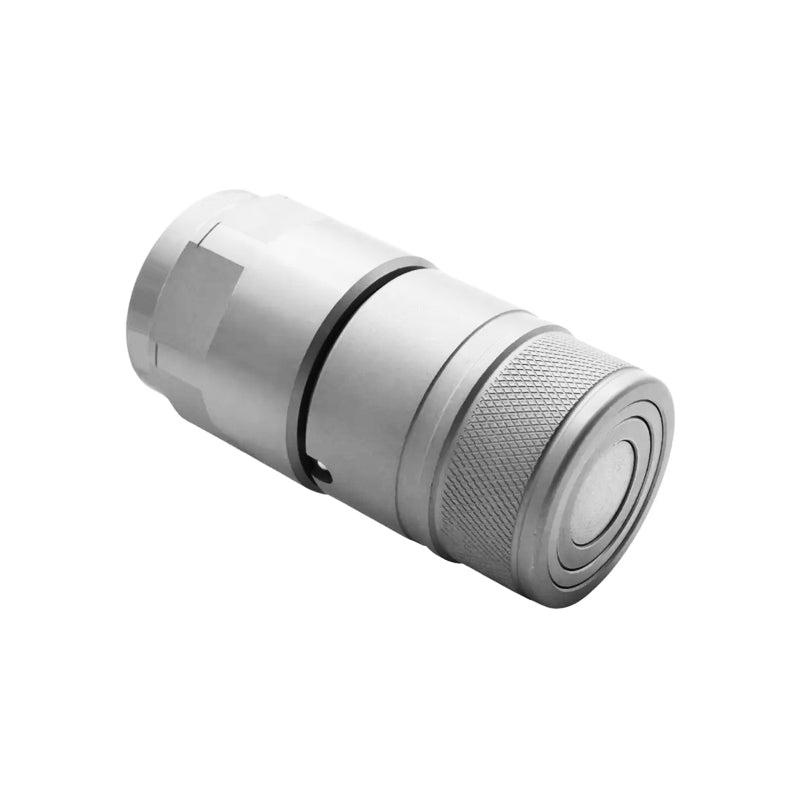

3/4 inch BSP Female Flat Face Quick Release Coupling - Allow 2-3 Days
3/4 inch BSP Female Flat Face Quick Release Coupling - Allow 2-3 Days
Regular price
$45.32
ex VAT
Regular price
Sale price
$45.32
ex VAT
In stock
Price Break
3+
$30.36
5+
$28.65
9+
$28.31
19+
$27.97
49+
$27.63
74+
$27.29
99+
$25.58
199+
$25.24
249+
$24.90
499+
$24.56
999+
$23.88
Quantity
Couldn't load pickup availability
Share this product
Description
Description
BSP Female Flat Face Quick Release Coupling: These couplings offer leak-free performance in high-pressure and hammer circuit applications. Made from durable carbon steel with zinc-nickel plating, these couplings resist corrosion and ensure longevity. Their flat-face design minimises air and contaminant inclusion while preventing fluid loss during disconnection. A safety locking sleeve prevents accidental disconnection and they also allow bidirectional flow, making them ideal for industrial, construction, and agricultural uses.
Benefits: Durable, safe and convenient, leak-free performance.
- Brand / Quality:
- Simply Quick Release Couplings - High Quality
- Thread Size:
- 3/4 inch BSP
- Length:
- 83.8mm
- Max Working Pressure:
- 350 bar
Technical
Technical

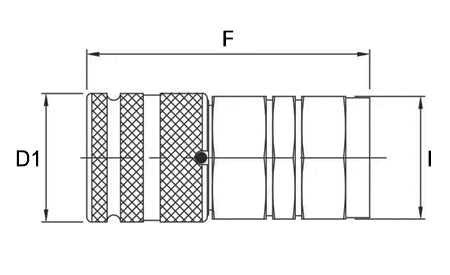

| Thread Size | 3/4 inch |
|---|---|
| Body Size (D1) | 38mm |
| Total Length (F) | 83.8mm |
| Nut Size (I) | 36mm |
| Maximum Working Pressure | 350 bar |
| Coupled Burst Pressure | 1400 bar |
| Female Burst Pressure | 1000 bar |
| Rated Flow | 45 lpm |
| Material | Zinc-Nickel Coated Steel |
| Weight | 0.493 kg |
