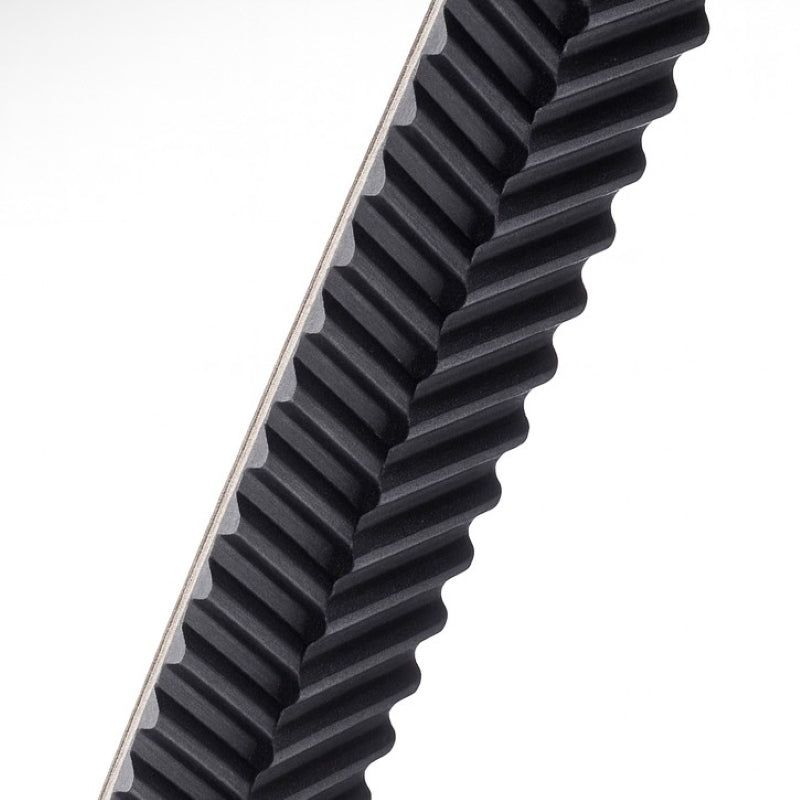

ContiTech R1568 SilentSync Helical Offset Toothed Belt 105mm Wide 1568mm Length 112 Teeth Allow 2-3 Days

SKU: R1568-MB

ContiTech R1568 SilentSync Helical Offset Toothed Belt 105mm Wide 1568mm Length 112 Teeth Allow 2-3 Days

$1,656.65 ex VAT
$1,656.65
ex VAT
Not in stock

Quantity Price Breaks

3 $1,474.42
5 $1,391.59
10 $1,375.02
15 $1,358.45
20 $1,341.89
30 $1,325.32
40 $1,242.49
50 $1,225.92
60 $1,209.35
75 $1,192.79
100 $1,159.66
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
ContiTech R1568 SilentSync Helical Offset Toothed Belt 105mm Wide 1568mm Length 112 Teeth Allow 2-3 Days
SKU: R1568-MB

ContiTech R1568 SilentSync Helical Offset Toothed Belt 105mm Wide 1568mm Length 112 Teeth Allow 2-3 Days

$1,656.65 ex VAT
$1,656.65
ex VAT

Description

ContiTech SilentSync Timing Belts: The ContiTech SilentSync is a high-performance, self-tracking timing belt engineered for exceptionally quiet, low-vibration operations and is ideal for horizontal drive systems. Featuring a patented Helical Offset Tooth (HOT) design, this belt offers up to 80% more power transmission and operates up to 19 dB quieter than standard straight-toothed belts. Built with an aramid tension member, synthetic rubber body, and special fabric tooth surface, SilentSync delivers superior strength, durability, and heat resistance (from -30 Degrees C to +130 Degrees C). It is electrically conductive (ISO 9563 compliant), ozone- and aging-resistant, and maintenance-free. SilentSync belts set a new standard for quiet, efficient, and reliable power transmission in demanding industrial applications.
Benefits: Continuous tooth engagement, improved alignment, maintenance free

Technical

Belt Length = 1568mm
Belt Width = 105mm
Number of Teeth = 112
Tooth Pitch - t = 14mm
Tooth Surface = Specially Treated Fabric
Tooth Material = Synthetic Rubber
Belt Backing Material = Synthetic Rubber
Tension Member = Aramid
Temperature Range = -30 to 130 Deg C
Colour = Red
Weight = 1.218kg
