• INA RA15XL Three Bolt Sheet Steel Round Housing with Eccentric Collar Insert 15mm Bore
  • INA
1 2

SKU: RA15-XL-INA

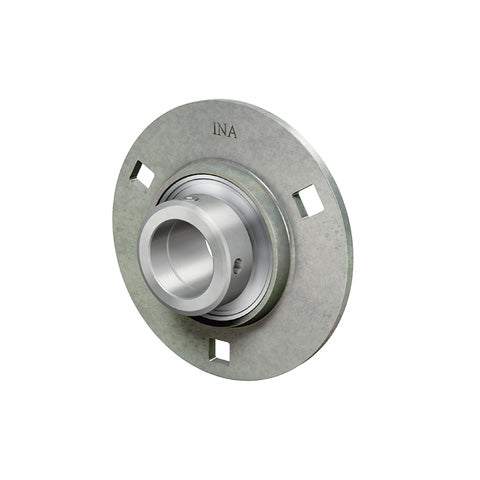

INA RA15XL Three Bolt Sheet Steel Round Housing with Eccentric Collar Insert 15mm Bore

INA RA15XL Three Bolt Sheet Steel Round Housing with Eccentric Collar Insert 15mm Bore
$27.11 ex VAT
$27.11 ex VAT
Sale Sold out

In stock

Price Break
4+ $18.16
9+ $17.14
19+ $16.93
29+ $16.73
39+ $16.52
49+ $16.32
59+ $15.30
69+ $15.10
79+ $14.89
89+ $14.69
99+ $14.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
15mm
Style:
RA
Pitch Circle Diameter:
63.5mm
Technical
d 15mm
H 81mm
B1 28.6mm
A 7mm
d3 max 28.4mm
J 63.5mm
N 7.1mm
Number of screw holes 3
S 2mm
U 24mm
V 48
Mass 0.23 kg
Load carrying capacity of housing Cor G 2700 N
Basic dynamic load rating Cr 10100 N
Basic static load rating Cor 4750 N
Designation of housing FLAN40-MSB (2 X)
Designation of bearing RAE15-XL-NPP-B
