SKU: RABRB12/47-FA106-INA

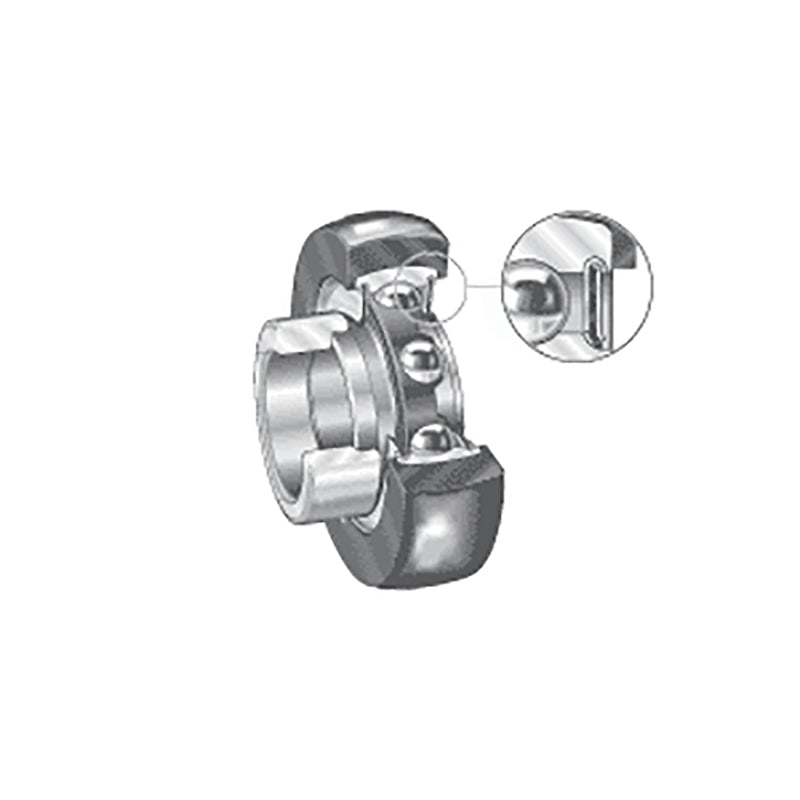

INA RABRB12/47XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 12x47.3x30.9mm

Name: INA RABRB12/47XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 12x47.3x30.9mm
Brand: INA
SKU: RABRB12/47-FA106-INA
Price: 36.90 USD
Availability: InStock

$36.90 ex VAT

Sale Sold out

In stock

Price Break

3+ $24.72

5+ $23.33

10+ $23.05

15+ $22.77

20+ $22.49

30+ $22.22

40+ $20.83

50+ $20.55

60+ $20.27

75+ $19.99

100+ $19.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 12mm
Outside Diameter:: 47.3mm
Width:: 30.9mm

Technical

d	12mm
D	47.3mm
B2	30.9mm
B1	28.6mm
C	17.6mm
D2	33.5mm
d3 max	28mm
S1	22.1mm
Operating temperature	-20 deg C to +85 deg C
Rubber ring: hardness, Shore A	70 deg
Rubber ring: load carrying capacity Cg	840 N
Dynamic load Cr	9800 N
Static load C0r	4750 N
Designation of rubber interliner	RABR39/46
Designation of bearing	RAE12-NPP-B-FA106
Weight	0.15 kg
