• INA RABRB15/47XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 15x47.3x31.1mm
  • INA
1 2

SKU: RABRB15/47-FA106-INA

INA RABRB15/47XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 15x47.3x31.1mm

INA RABRB15/47XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 15x47.3x31.1mm
$37.11 ex VAT
$37.11 ex VAT
Sale Sold out

In stock

Price Break
3+ $24.86
5+ $23.46
10+ $23.18
15+ $22.90
20+ $22.62
30+ $22.34
40+ $20.95
50+ $20.67
60+ $20.39
75+ $20.11
100+ $19.55

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

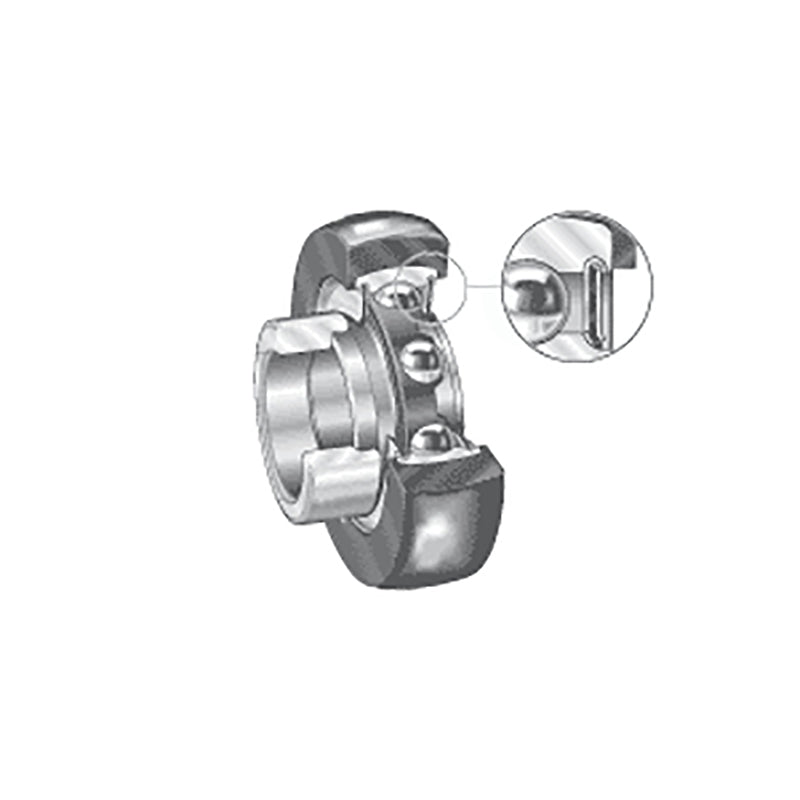

INA RABRA and RABRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C.
Benefits: Corrotect® coated to protect against fretting corrosion.
Brand / Quality:
INA - High Quality
Inside Diameter:
15mm
Outside Diameter:
47.3mm
Width:
31.1mm
Technical
d 15mm
D 47.3mm
B2 31.1mm
B1 28.6mm
C 18mm
D2 33.5mm
d3 max 28mm
S1 22.1mm
Operating temperature -20 deg C to +85 deg C
Rubber ring: hardness, Shore A 70 deg
Rubber ring: load carrying capacity Cg 840 N
Dynamic load Cr 9800 N
Static load C0r 4750 N
Designation of rubber interliner RABR39/46
Designation of bearing RAE15-NPP-B-FA106
Weight 0.15 kg
