• INA RABRB20/52XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x52.3x32.3mm
  • INA
1 2

SKU: RABRB20/52-FA106-INA

INA RABRB20/52XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x52.3x32.3mm

INA RABRB20/52XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x52.3x32.3mm
$40.79 ex VAT
$40.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $27.32
5+ $25.79
10+ $25.48
15+ $25.17
20+ $24.87
30+ $24.56
40+ $23.03
50+ $22.72
60+ $22.41
75+ $22.10
100+ $21.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

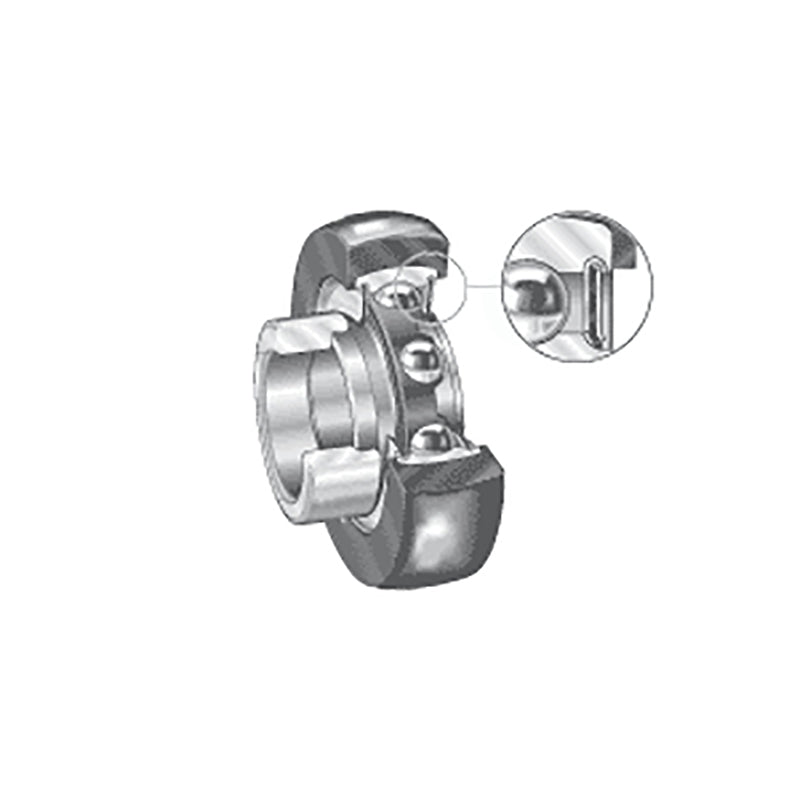

INA RABRA and RABRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C.
Benefits: Corrotect® coated to protect against fretting corrosion.
Brand / Quality:
INA - High Quality
Inside Diameter:
20mm
Outside Diameter:
52.3mm
Width:
32.3mm
Technical
d 20mm
D 52.3mm
B2 32.3mm
B1 31mm
C 17.6mm
D2 39mm
d3 max 33mm
S1 23.5mm
Operating temperature -20 deg C to +85 deg C
Rubber ring: hardness, Shore A 70 deg
Rubber ring: load carrying capacity Cg 1160 N
Dynamic load Cr 12800 N
Static load C0r 6600 N
Designation of rubber interliner RABR47/52
Designation of bearing RAE20-NPP-B-FA106
Weight 0.2 kg
