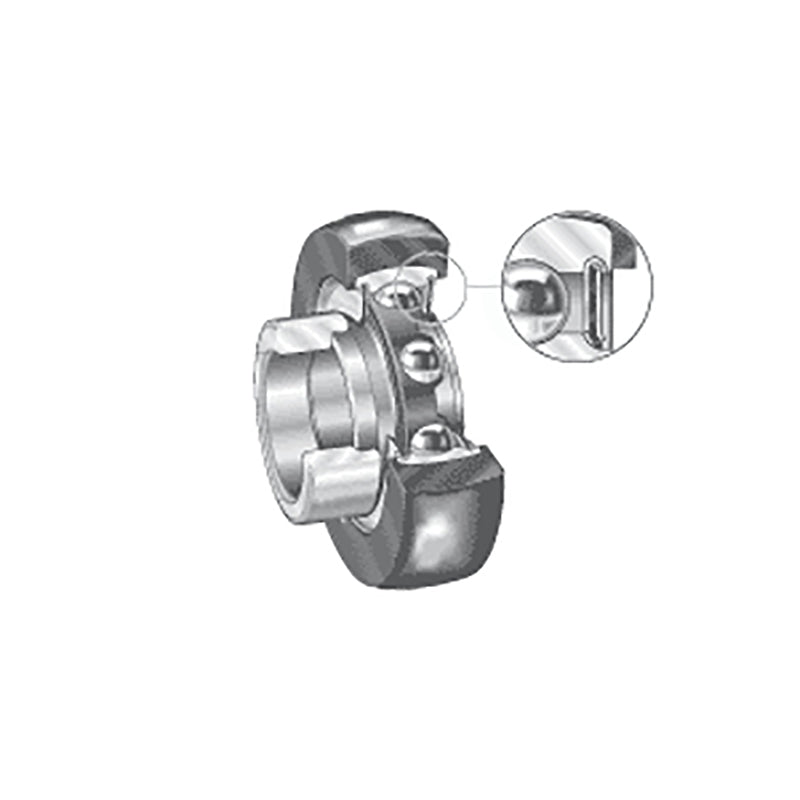

• INA RABRB30/72XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 30x72.2x38.2mm
  • INA
1 2

SKU: RABRB30/72-FA106-INA

INA RABRB30/72XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 30x72.2x38.2mm

INA RABRB30/72XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 30x72.2x38.2mm
$66.33 ex VAT
$66.33 ex VAT
Sale Sold out

In stock

Price Break
3+ $44.43
5+ $41.93
10+ $41.43
15+ $40.93
20+ $40.44
30+ $39.94
40+ $37.44
50+ $36.94
60+ $36.44
75+ $35.94
100+ $34.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA RABRA and RABRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C.
Benefits: Corrotect® coated to protect against fretting corrosion.
Brand / Quality:
INA - High Quality
Inside Diameter:
30mm
Outside Diameter:
72.2mm
Width:
38.2mm
Technical
d 30mm
D 72.2mm
B2 38.2mm
B1 35.8mm
C 23mm
D2 54mm
d3 max 44mm
S1 26.7mm
Operating temperature -20 deg C to +85 deg C
Rubber ring: hardness, Shore A 70 deg
Rubber ring: load carrying capacity Cg 1980 N
Dynamic load Cr 19500 N
Static load C0r 11300 N
Designation of rubber interliner RABR62/72
Designation of bearing RAE30-NPP-B-FA106
Weight 0.38 kg
