• INA RABRB35/80XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 35x80.2x41.4mm
  • INA
1 2

SKU: RABRB35/80-FA106-INA

INA RABRB35/80XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 35x80.2x41.4mm

INA RABRB35/80XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 35x80.2x41.4mm
$65.29 ex VAT
$65.29 ex VAT
Sale Sold out

In stock

Price Break
3+ $43.73
5+ $41.28
10+ $40.79
15+ $40.29
20+ $39.80
30+ $39.31
40+ $36.86
50+ $36.36
60+ $35.87
75+ $35.38
100+ $34.40

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

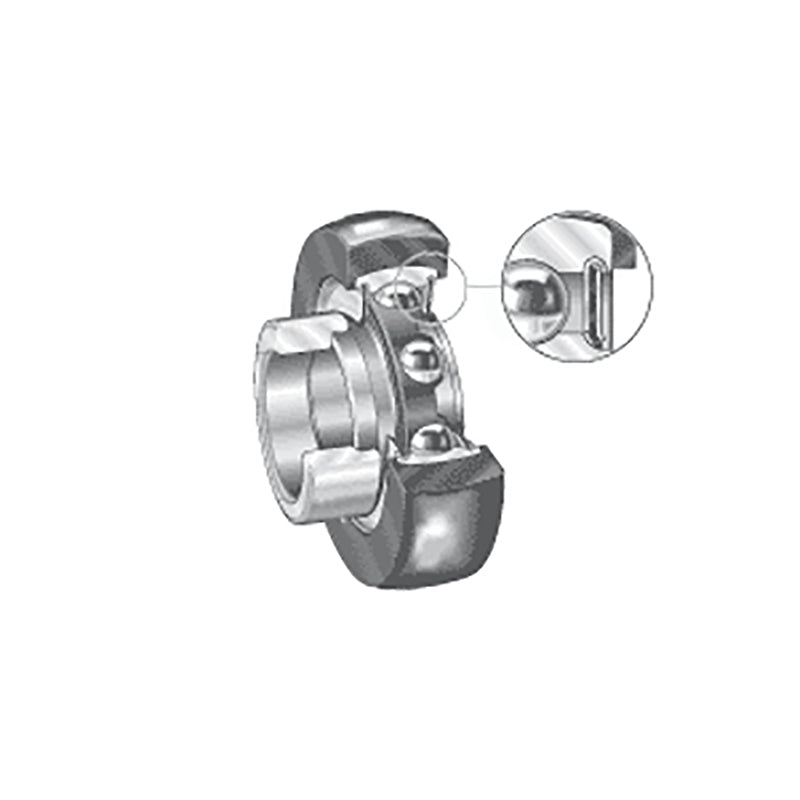

INA RABRA and RABRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C.
Benefits: Corrotect® coated to protect against fretting corrosion.
Brand / Quality:
INA - High Quality
Inside Diameter:
35mm
Outside Diameter:
80.2mm
Width:
41.4mm
Technical
d 35mm
D 80.2mm
B2 41.4mm
B1 39mm
C 24mm
D2 62mm
d3 max 51mm
S1 29.4mm
Operating temperature -20 deg C to +85 deg C
Rubber ring: hardness, Shore A 70 deg
Rubber ring: load carrying capacity Cg 2700 N
Dynamic load Cr 25500 N
Static load C0r 15300 N
Designation of rubber interliner RABR72/80
Designation of bearing RAE35-NPP-B-FA106
Weight 0.57 kg
