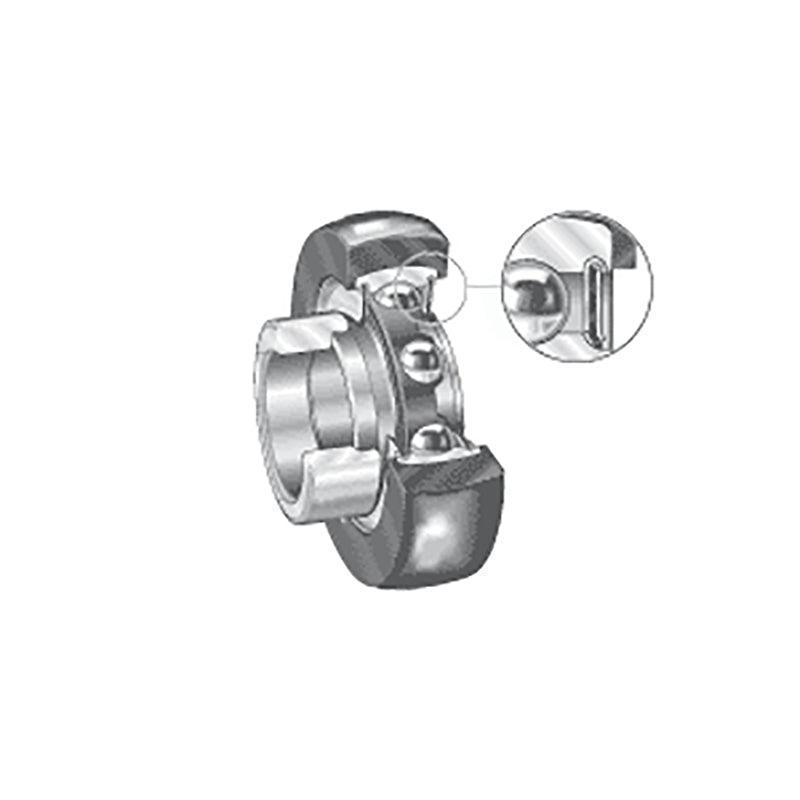

• INA RABRB40/85XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 40x85x46.3mm
  • INA
1 2

SKU: RABRB40/85-FA106-INA

INA RABRB40/85XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 40x85x46.3mm

INA RABRB40/85XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 40x85x46.3mm
$75.20 ex VAT
$75.20 ex VAT
Sale Sold out

In stock

Price Break
3+ $50.37
5+ $47.54
10+ $46.98
15+ $46.41
20+ $45.85
30+ $45.28
40+ $42.45
50+ $41.88
60+ $41.32
75+ $40.75
100+ $39.62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
40mm
Outside Diameter:
85mm
Width:
46.3mm
Technical
d 40mm
D 85mm
B2 46.3mm
B1 43.8mm
C 27mm
D2 70mm
d3 max 58mm
S1 32.7mm
Operating temperature -20 deg C to +85 deg C
Rubber ring: hardness, Shore A 70 deg
Rubber ring: load carrying capacity Cg 3500 N
Dynamic load Cr 32500 N
Static load C0r 19800 N
Designation of rubber interliner RABR80/85
Designation of bearing RAE40-NPP-B-FA106
Weight 0.73 kg
