SKU: RAE12-NPP-FA106-INA

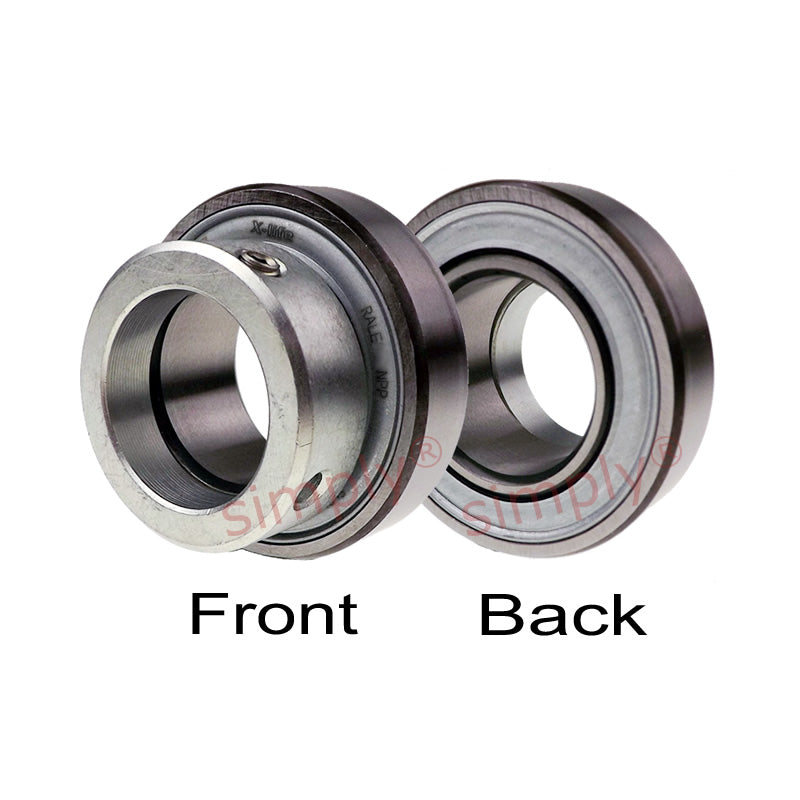

INA RAE12XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals and Eccentric Collar 12x40x28.6mm

Name: INA RAE12XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals and Eccentric Collar 12x40x28.6mm
Brand: INA
SKU: RAE12-NPP-FA106-INA
Price: 24.79 USD
Availability: InStock

$24.79 ex VAT

Sale Sold out

In stock

Price Break

3+ $16.61

5+ $15.67

10+ $15.49

15+ $15.30

20+ $15.11

30+ $14.93

40+ $14.00

50+ $13.81

60+ $13.62

75+ $13.44

100+ $13.06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

INA RAE..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C.
Benefits: Corrotect® coated to protect against fretting corrosion.

Brand / Quality:: INA - High Quality
Inside Diameter:: 12mm
Outside Diameter:: 40mm
Width:: 28.6mm

Technical

d	12mm
D	40mm
B1	28.6mm
B	19mm
C	12mm
d2	23mm
d3 max	28mm
S	6.5mm
W	3mm
Dynamic load Cr	9800 N
Static load C0r	4750 N
Weight	0.13 kg
