SKU: RAE25-NPP-FA106-INA

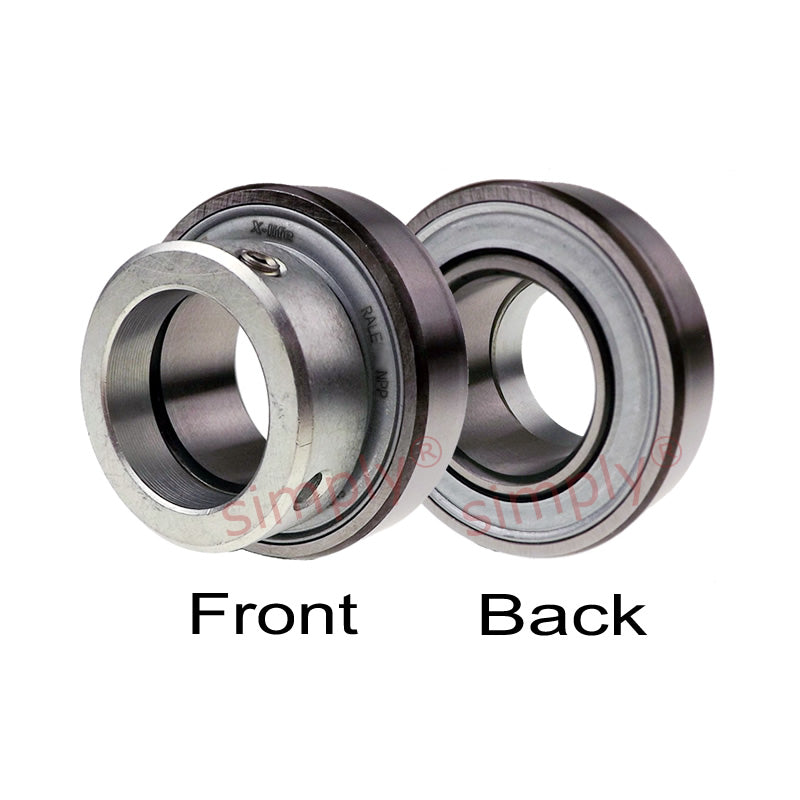

INA RAE25XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals and Eccentric Collar 25x52x31mm
INA RAE25XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals and Eccentric Collar 25x52x31mm
Regular price
$33.56
ex VAT
Regular price
Sale price
$33.56
ex VAT
In stock
Price Break
3+
$22.48
5+
$21.22
10+
$20.97
15+
$20.71
20+
$20.46
30+
$20.21
40+
$18.95
50+
$18.69
60+
$18.44
75+
$18.19
100+
$17.68
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
INA RAE..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 31mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B1 | 31mm |
| B | 21.4mm |
| C | 15mm |
| d2 | 30.5mm |
| d3 max | 37.5mm |
| S | 7.5mm |
| W | 3mm |
| Dynamic load Cr | 14000 N |
| Static load C0r | 7800 N |
| Weight | 0.2 kg |
