SKU: RAE25-NPP-NR-INA

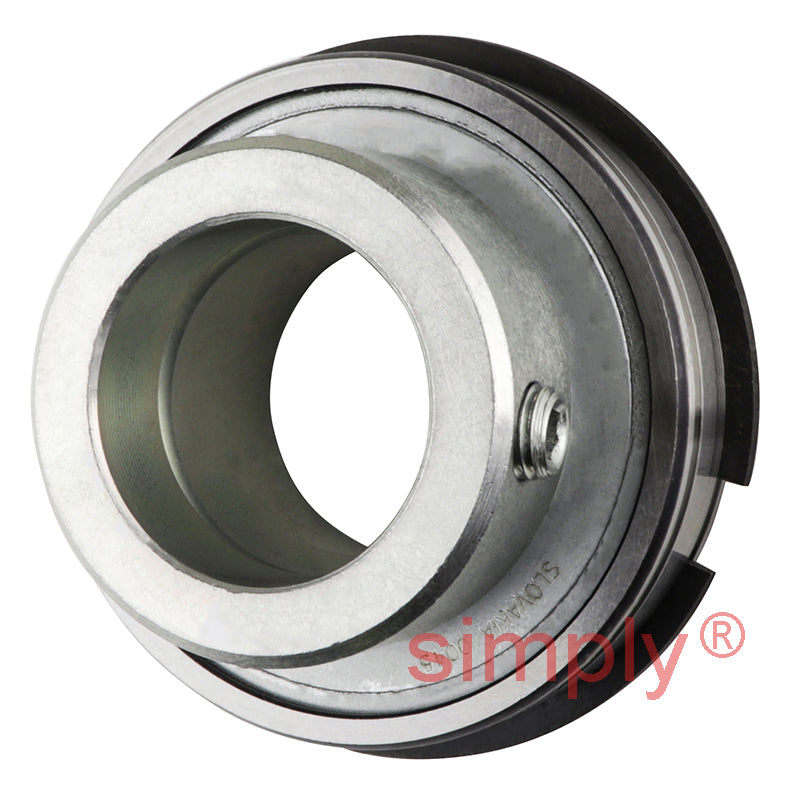

INA RAE25XLNPPNR Metric Parallel Outer Bearing Insert with P Seals and Slots in Outer Ring 25x52x31mm - Allow 2-3 Days
INA RAE25XLNPPNR Metric Parallel Outer Bearing Insert with P Seals and Slots in Outer Ring 25x52x31mm - Allow 2-3 Days
Regular price
$53.01
ex VAT
Regular price
Sale price
$53.01
ex VAT
In stock
Price Break
3+
$39.49
5+
$37.90
10+
$37.10
15+
$35.90
20+
$35.10
30+
$33.11
40+
$27.92
50+
$0.00
60+
$0.00
75+
$0.00
100+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
INA RAE..-NPP-NR Series Inserts: Bearing insert with parallel outer race, P seals, eccentric collar and slots in the outer ring. The bearing is supplied with one snap ring to DIN 5 417 already fitted. These ball bearings are greased and cannot be re-lubricated. Operating temperature range: -20 deg C to +120 deg C. Benefits: Accommodates snap rings. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 31mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B1 | 31mm |
| A | 3.58mm |
| Tolerance | -0.25 |
| a | 1.12mm |
| B | 21.4mm |
| C | 15mm |
| D2 | 57.9mm |
| d2 | 30.5mm |
| d3 max | 37.5mm |
| S | 7.5mm |
| W | 3mm |
| Dynamic load Cr | 14000 N |
| Static load C0r | 7800 N |
| Weight | 0.2 kg |
