SKU: RAE35-NPP-NR-INA

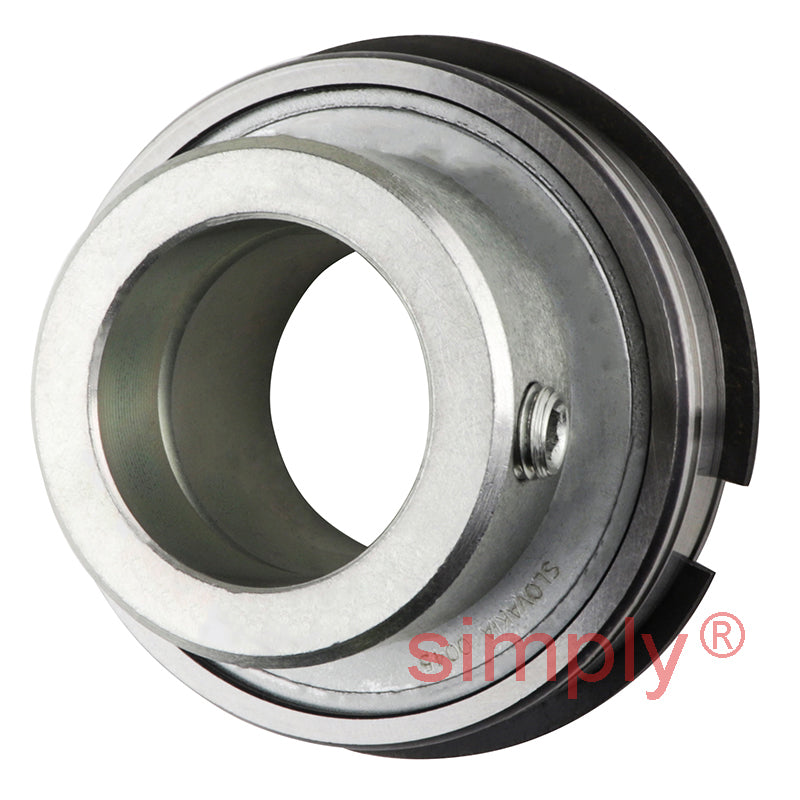

INA RAE35XLNPPNR Metric Parallel Outer Bearing Insert with P Seals and Slots in Outer Ring 35x72x39mm

Name: INA RAE35XLNPPNR Metric Parallel Outer Bearing Insert with P Seals and Slots in Outer Ring 35x72x39mm
Brand: INA
SKU: RAE35-NPP-NR-INA
Price: 44.67 USD
Availability: InStock

$44.67 ex VAT

Sale Sold out

In stock

Price Break

3+ $29.92

5+ $28.24

10+ $27.90

15+ $27.57

20+ $27.23

30+ $26.90

40+ $25.22

50+ $24.88

60+ $24.54

75+ $24.21

100+ $23.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

INA RAE..-NPP-NR Series Inserts: Bearing insert with parallel outer race, P seals, eccentric collar and slots in the outer ring. The bearing is supplied with one snap ring to DIN 5 417 already fitted. These ball bearings are greased and cannot be re-lubricated. Operating temperature range: -20 deg C to +120 deg C.
Benefits: Accommodates snap rings.

Brand / Quality:: INA - High Quality
Inside Diameter:: 35mm
Outside Diameter:: 72mm
Width:: 39mm

Technical

d	35mm
D	72mm
B1	39mm
A	4.98mm
Tolerance	-0.3
a	1.7mm
B	25.4mm
C	19mm
D2	78.6mm
d2	44.6mm
d3 max	51mm
S	9.5mm
W	5mm
Dynamic load Cr	25500 N
Static load C0r	15300 N
Weight	0.48 kg
