SKU: RALE20-NPP-FA106-INA

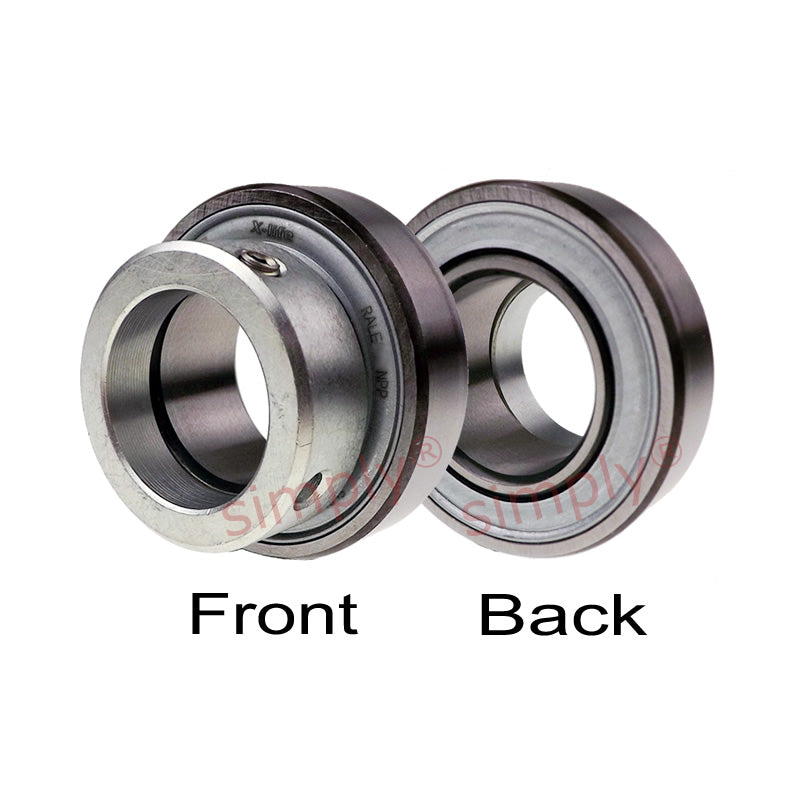

INA RALE20XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals 20x42x24.5mm

Name: INA RALE20XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals 20x42x24.5mm
Brand: INA
SKU: RALE20-NPP-FA106-INA
Price: 26.61 USD
Availability: InStock

$26.61 ex VAT

Sale Sold out

In stock

Price Break

3+ $17.83

5+ $16.83

10+ $16.62

15+ $16.42

20+ $16.22

30+ $16.02

40+ $15.02

50+ $14.82

60+ $14.62

75+ $14.42

100+ $14.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

INA RALE..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. Operating temperature range: -20 deg C to +120 deg C.

Brand / Quality:: INA - High Quality
Inside Diameter:: 20mm
Outside Diameter:: 42mm
Width:: 24.5mm

Technical

d	20mm
D	42mm
B1	24.5mm
B	16.7mm
C	12mm
d2	25.4mm
d3 max	30mm
S	6mm
W	2.5mm
Dynamic load Cr	9400 N
Static load C0r	5000 N
Weight	0.1 kg
