SKU: RALE30-NPP-B-INA

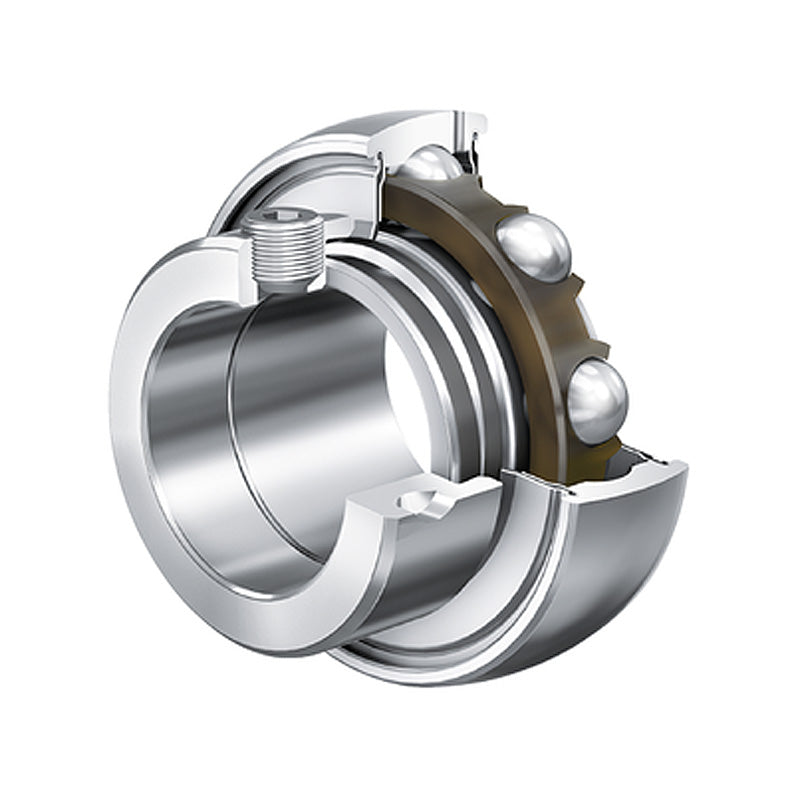

INA RALE30XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 30x55x26.5mm

Name: INA RALE30XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 30x55x26.5mm
Brand: INA
SKU: RALE30-NPP-B-INA
Price: 34.41 USD
Availability: InStock

$34.41 ex VAT

Sale Sold out

In stock

Price Break

3+ $23.05

5+ $21.76

10+ $21.50

15+ $21.24

20+ $20.98

30+ $20.72

40+ $19.43

50+ $19.17

60+ $18.91

75+ $18.65

100+ $18.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

INA RALE..-NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. Operating temperature range: -20 deg C to +120 deg C.
Benefits: Compensation of misalignment.

Brand / Quality:: INA - High Quality
Inside Diameter:: 30mm
Outside Diameter:: 55mm
Width:: 26.5mm

Technical

d	30mm
Dsp	55mm
B1	26.5mm
B	18.5mm
C	13mm
d2	35.7mm
d3 max	42.5mm
S	6.5mm
W	2.5mm
Dynamic load Cr	13200 N
Static load C0r	8300 N
Weight	0.18 kg
