SKU: RASE20-XL-N-FA125-INA

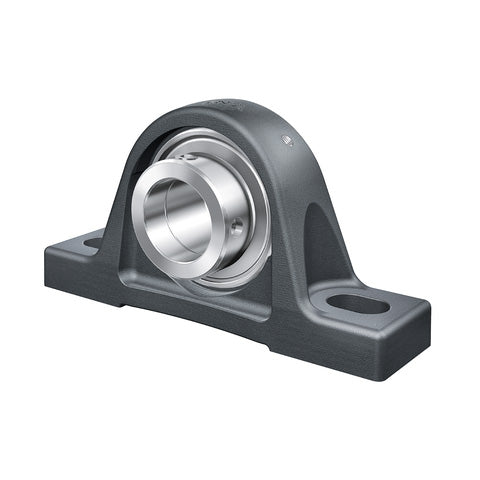

INA RASE20XLNFA125 Cast Iron Plummer Block Housing with Eccentric Collar Insert and Anti-Corrosion Protection 20mm Bore

Name: INA RASE20XLNFA125 Cast Iron Plummer Block Housing with Eccentric Collar Insert and Anti-Corrosion Protection 20mm Bore
Brand: INA
SKU: RASE20-XL-N-FA125-INA
Price: 61.41 USD
Availability: InStock

$61.41 ex VAT

Sale Sold out

In stock

Price Break

4+ $41.14

9+ $38.82

19+ $38.36

29+ $37.90

39+ $37.44

49+ $36.98

59+ $34.67

69+ $34.20

79+ $33.74

89+ $33.28

99+ $32.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 20mm
Style:: RASE
Bolt Hole Centres:: 97mm

Technical

d	20mm
L	130mm
H2	64mm
A	32mm
A1	19mm
B1	43.7mm33mm
H	33.3mm
H1	14.5mm
J	97mm
N	11mm
N1	19mm
Q	M6
S1	26.6mm
Mass	0.59 kg
Basic dynamic load rating Cr	13600 N
Basic static load rating Cor	6600 N
Designation of housing	ASE04
Designation of bearing	GE20-XL-KRR-B-FA125
Bearing end cap, closed design (to be ordered separately)	KASK04
