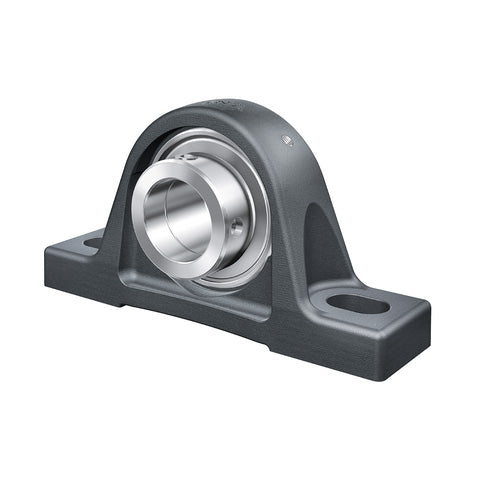

• INA RASE20XLN Cast Iron Plummer Block Housing with Eccentric Collar Insert 20mm Bore
  • INA
1 2

SKU: RASE20-XL-N-INA

INA RASE20XLN Cast Iron Plummer Block Housing with Eccentric Collar Insert 20mm Bore

INA RASE20XLN Cast Iron Plummer Block Housing with Eccentric Collar Insert 20mm Bore
$46.33 ex VAT
$46.33 ex VAT
Sale Sold out

In stock

Price Break
4+ $31.03
9+ $29.29
19+ $28.94
29+ $28.59
39+ $28.24
49+ $27.90
59+ $26.15
69+ $25.80
79+ $25.46
89+ $25.11
99+ $24.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This cast iron housing is a single-piece unit with a high load carrying capacity and features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: High load carrying capacity, re-lubricatable, eccentric collar, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
20mm
Style:
RASE
Bolt Hole Centres:
97mm
Technical
d 20mm
L 130mm
H2 64mm
A 32mm
A1 19mm
B1 43.7mm33mm
H 33.3mm
H1 14.5mm
J 97mm
N 11mm
N1 19mm
Q M6
S1 26.6mm
Mass 0.63 kg
Basic dynamic load rating Cr 13600 N
Basic static load rating Cor 6600 N
Designation of housing ASE04
Designation of bearing GE20-XL-KRR-B
Bearing end cap, closed design (to be ordered separately) KASK04
