INA RASE40XLFA164 Cast Iron Plummer Block Housing with Eccentric Collar Insert for High Temperatures 40mm Bore - Allow 2-3 Days
INA RASE40XLFA164 Cast Iron Plummer Block Housing with Eccentric Collar Insert for High Temperatures 40mm Bore - Allow 2-3 Days
Regular price
$588.87
ex VAT
Regular price
Sale price
$588.87
ex VAT
In stock
Price Break
4+
$438.70
9+
$420.97
19+
$412.11
29+
$398.82
39+
$389.95
49+
$367.80
59+
$310.19
69+
$0.00
79+
$0.00
89+
$0.00
99+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This cast iron housing is a single-piece unit with a high load carrying capacity and features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: High load carrying capacity, re-lubricatable, eccentric collar, tolerates misalignment of the shaft, suitable for high temperatures (up to +250 deg C) |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Temperature Range:
- High Temp
- Style:
- RASE
- Bolt Hole Centres:
- 138mm
Technical
Technical

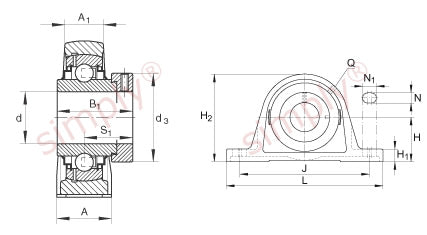

| d | 40mm |
|---|---|
| L | 179mm |
| H2 | 99mm |
| A | 48mm |
| A1 | 30mm |
| B1 | 56.5mm58mm |
| H | 49.2mm |
| H1 | 19mm |
| J | 138mm |
| N | 14mm |
| N1 | 26mm |
| Q | M6 |
| S1 | 35.1mm |
| Mass | 1.97 kg |
| Basic dynamic load rating Cr | 34500 N |
| Basic static load rating Cor | 19800 N |
| Designation of housing | ASE/AK08 |
| Designation of bearing | GE40-XL-KRR-B-FA164 |
